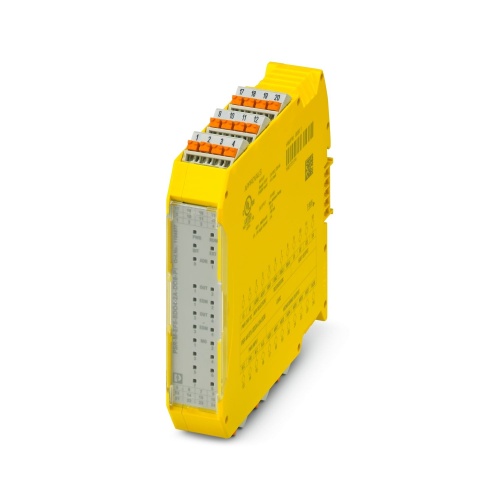

Phoenix Contact 1104977 Extension module PSR-M-EF5-SDO4-2A-DO8-PI
Normally In Stock
Code: 73010
PSR-M-EF5-SDO4-2A-DO8-PI Phoenix 1104977 Extension module
Condition: New
Usually ships Same Day or Next Day$506.95
Sale Price
$422.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1104977 This safe extension module features 4 safe outputs, 4 reset inputs, and 8 signal outputs, as well as a TBUS interface, allowing it to operate up to SIL 3, Cat. 4/PL e safety levels, and comes with a pluggable Push-in terminal block and included TBUS connector for added convenience and flexibility.
Specifications
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Safety Interfaces
TBUS
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Tool-free and time-saving installation thanks to Push-in technology
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Cost-effective safety solution with a high level of adaptability to individual requirements
Low housing width of just 22.6 mm
Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
