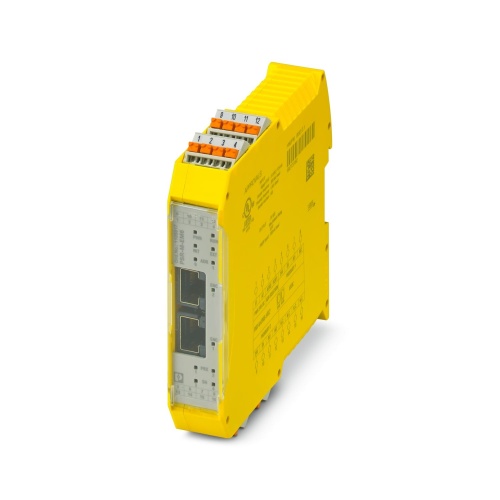

Phoenix Contact 1105017 Extension module PSR-M-EM6-HTL2-PI
Normally In Stock
Code: 73009
PSR-M-EM6-HTL2-PI Phoenix 1105017 Extension module
Condition: New
Usually ships Same Day or Next Day$603.00
Sale Price
$502.50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1105017 This safety extension module offers comprehensive monitoring capabilities including zero-speed detection, speed and direction of rotation tracking, 2-axis monitoring, NPN/PNP proximity switch functionality, support for up to SIL 3, Cat. 4/PL e, and comes with a pluggable push-in terminal block and TBUS connector.
Specifications
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Safety Interfaces
TBUS
Safety Interfaces
Proximity Switches
Safety Interfaces
Encoder
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Tool-free and time-saving installation thanks to Push-in technology
Fast startup, thanks to easy hardware and software configuration
Machine downtimes minimized with comprehensive, easy-to-understand diagnostics
Cost-effective safety solution with a high level of adaptability to individual requirements
Low housing width of just 22.6 mm
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Suitable for elevator applications in accordance with EN 81-20
