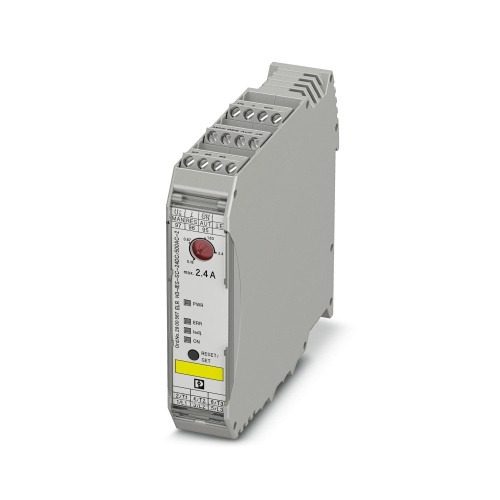

Phoenix Contact 2900567 Hybrid motor starter ELR H3-IES-SC- 24DC/500AC-2
Normally In Stock
Code: 72975
ELR H3-IES-SC- 24DC/500AC-2 Phoenix 2900567 Hybrid motor starter
Condition: New
Usually ships Same Day or Next Day$278.36
Sale Price
$231.97
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2900567 The hybrid motor starter is designed to start 3-phase AC motors up to 500V AC with an output current of 2.4A, controlled by a 24V DC power source that can be adjusted for overload shutdown protection and features an emergency stop function, meeting the standards of SIL3/PLe safety certification and utilizing screw connections for easy installation.
Specifications
Motor Component
Hybrid Motor Starter
Motor Connection Method
Screw Connection
Motor Input Voltage
24 VDC
Manufacturer
Phoenix Contact
Motor Load Current

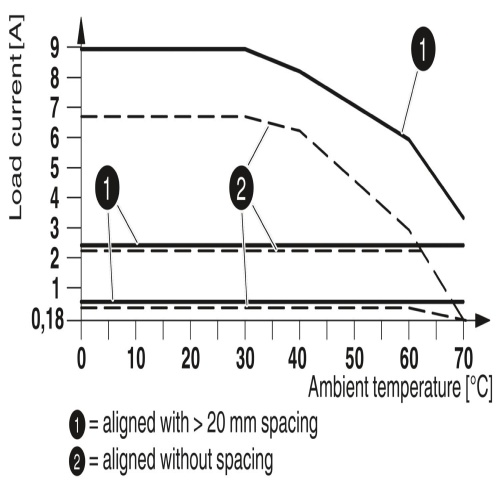

180 Mamp - 2.4 Amp (See To Derating)
Features
Long service life
Safety level in accordance with IEC 61508-1: SIL 3, ISO 13849: PL e
Reduction in wiring
22.5 mm wide
Space saving
3-phase loop bridges
Adjustable current for bimetal function
Low-wear switching
