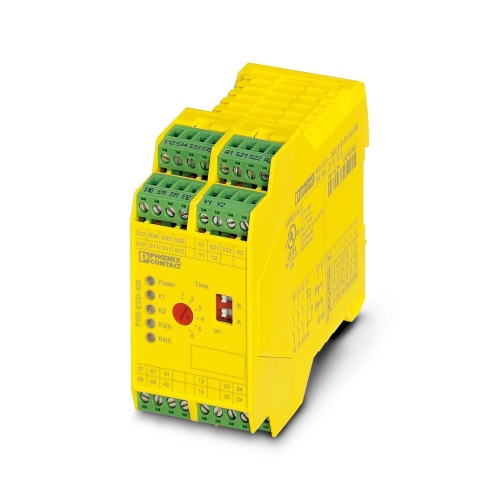

Phoenix Contact 2981428 Safety relays PSR-SCP-24DC/ESD/5X1/1X2/300
Normally In Stock
Code: 72942
PSR-SCP-24DC/ESD/5X1/1X2/300 Phoenix 2981428 Safety relays
Condition: New
Usually ships Same Day or Next Day$694.33
Sale Price
$578.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2981428 A safety relay provides emergency stop and safety door monitoring capabilities up to SIL 3 or Cat 4 standards, offering one- or two-channel operation in either automatic or manual activation modes, featuring three N/O contacts, one N/C contact, and two N/O contacts with a dropout delay of 0.2 seconds to 300 seconds, along with a plug-in screw terminal block for easy connection options.
Specifications
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
5 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features

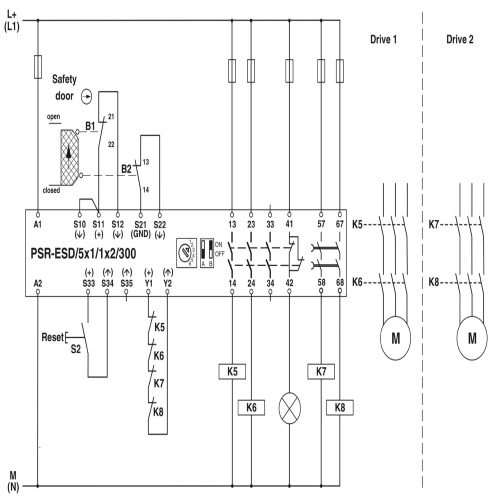

For emergency stop and safety door monitoring, plus evaluation of light grids
Manually monitored and automatic activation
Up to Cat. 3/4 and PL d/e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Maximum of 3 undelayed and 2 dropout delay contacts
1- and 2-channel control
Adjustable delay time of 0.2 s ... 300 s (24 increments)
Protective labels to prevent manipulation of the set time (PSR-ESD-300) or electronic protection against manipulation (PSR-ESD-30)
