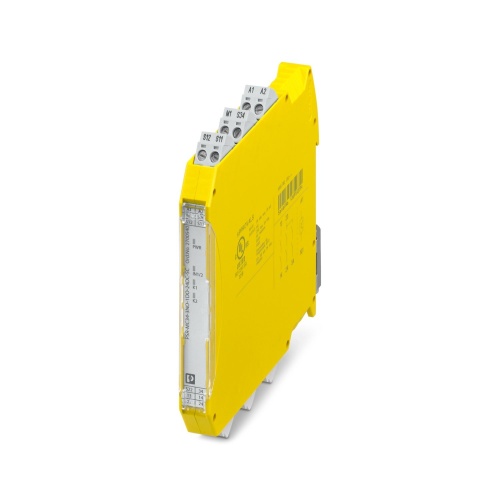

Phoenix Contact 2700540 Safety relays PSR-MC34-3NO-1DO-24DC-SC
Normally In Stock
Code: 72940
PSR-MC34-3NO-1DO-24DC-SC Phoenix 2700540 Safety relays
Condition: New
Usually ships Same Day or Next Day$220.08
Sale Price
$183.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700540 A safety relay for emergency stop and safety doors is available with a range of capabilities including SIL 3, Cat 4, and PL e certifications. It can operate in either automatic or manual modes, with monitoring and start control options, as well as cross-circuit detection to ensure safe shutdown. The device has multiple current paths to facilitate easy installation and operation, and comes equipped with a plug-in screw terminal block for convenient connection.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
3 enabling current paths, 1 digital signal output
Low housing width of just 12.5 mm
2 channel control
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
Manually monitored and automatic activation in a single device
Cross-circuit detection
Downloads

Code: 72940
Phoenix Contact 2700540 Safety relays PSR-MC34-3NO-1DO-24DC-SC
