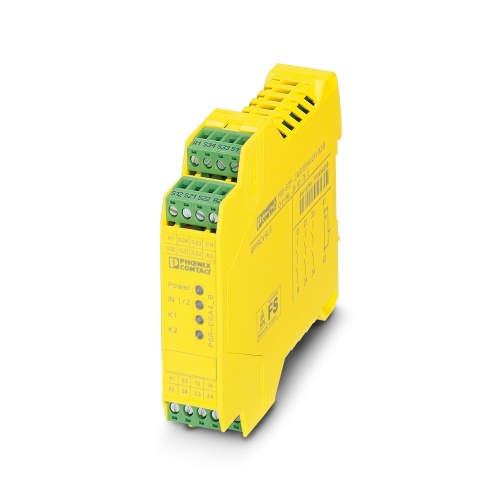

Phoenix Contact 2963763 Safety relays PSR-SCP- 24UC/ESA4/3X1/1X2/B
Normally In Stock
Code: 72928
PSR-SCP- 24UC/ESA4/3X1/1X2/B Phoenix 2963763 Safety relays
Condition: New
Usually ships Same Day or Next Day$266.40
Sale Price
$222.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

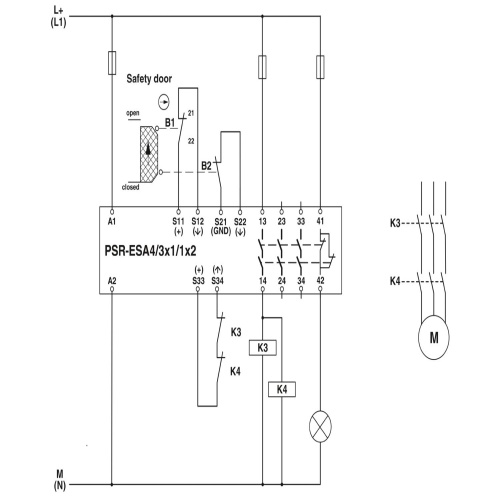

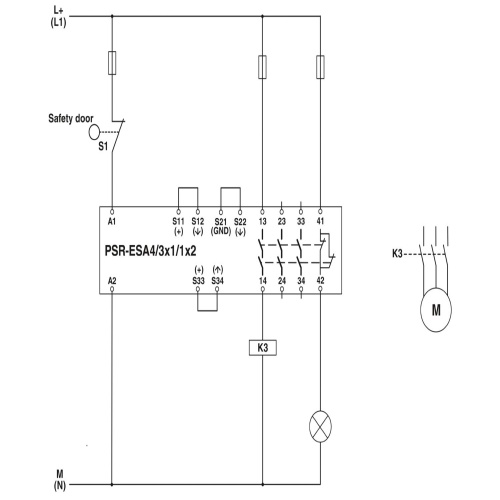

Phoenix Contact 2963763 A safety relay for emergency stop and safety door monitoring is available, meeting SIL 3 or Cat. 4 requirements in accordance with EN ISO 13849 standards, offering two-channel operation and three enabling current paths. It features a nominal input voltage of 24V DC and comes equipped with a plug-in screw terminal block.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Input Voltage
24 Volt
Features
Manually monitored and automatic activation in a single device
2 channel control
3 enabling current paths, 1 signaling current path
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
