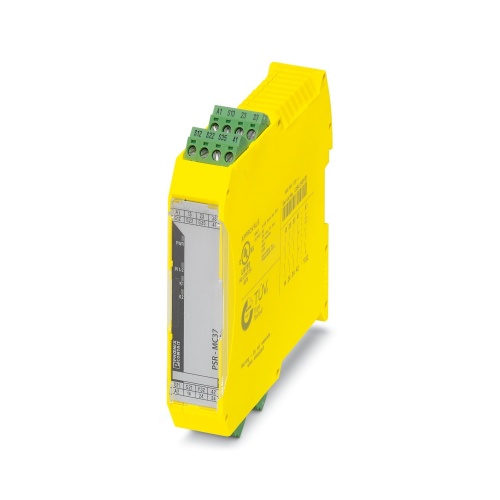

Phoenix Contact 2702412 Safety relays PSR-MC37-3NO-1NC-24DC-SP
Normally In Stock
Code: 72920
PSR-MC37-3NO-1NC-24DC-SP Phoenix 2702412 Safety relays
Condition: New
Usually ships within 7-14 days. Call for ship time.$345.34
Sale Price
$287.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2702412 A safety relay suitable for emergency switching off and safety doors, as well as elevator applications, is available with SIL 3, Cat 4, PL e, 1 or 2-channel operation options. It can be configured with automatic or manual start capabilities and features cross-circuit detection. Additionally, it has three enabling current paths and operates at a US voltage of 24V DC, making it easily accessible via a pluggable Push-in terminal block for convenient installation and maintenance.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Automatic and manual activation
3 enabling current paths, 1 signaling current path, 1 digital signal output
Cross-circuit detection
Low housing width of only 22.5mm
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
Suitable for elevator applications in accordance with EN 81-20
