Code: 72918

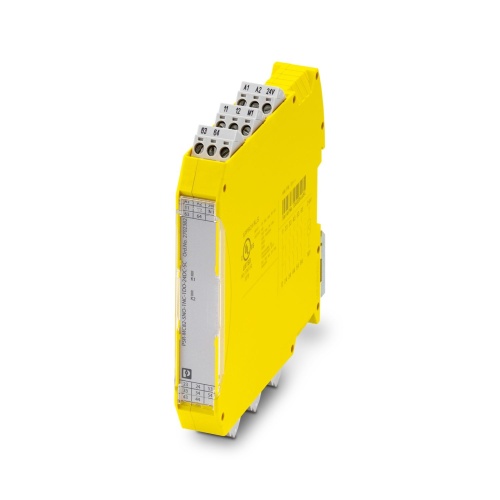

Phoenix Contact 2702382 Extension module PSR-MC82-5NO-1NC-1DO-24DC-SC
Normally In Stock
PSR-MC82-5NO-1NC-1DO-24DC-SC Phoenix 2702382 Extension module
Condition: New
Usually ships Same Day or Next Day$190.32
Sale Price
$158.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2702382 To connect devices that require extension contacts up to SIL level 3 and Cat. 4, a suitable evaluation device should be used in conjunction with an enabling current path, which is facilitated by a 24V DC power supply available at the plug-in screw terminal block.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
5 Enabling Current Paths
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features

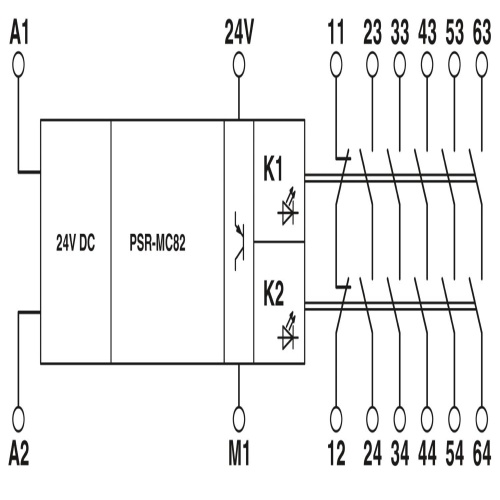

5 enabling current paths, 1 confirmation current path, 1 digital signal output
Low housing width of just 17.5 mm
1- and 2-channel control
Up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061 in conjunction with suitable evaluation device
Automatic activation
