Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

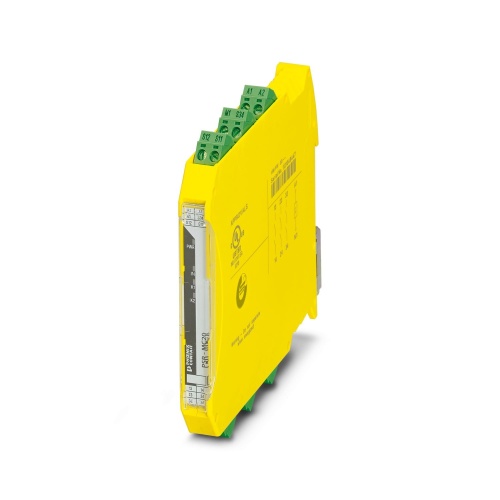

Phoenix Contact 2700467 Safety relays PSR-MC20-3NO-1DO-24DC-SP
Normally In Stock
Code: 72916
PSR-MC20-3NO-1DO-24DC-SP Phoenix 2700467 Safety relays
Condition: New
Usually ships Same Day or Next Day$170.76
Sale Price
$142.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

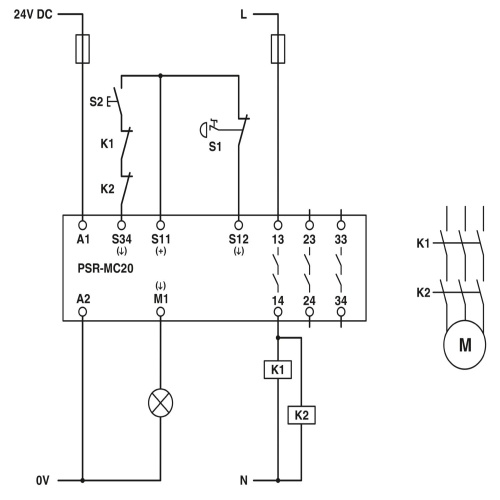

Phoenix Contact 2700467 A safety relay for emergency stop and safety doors is available with varying levels of reliability up to SIL 3 and Category 4, depending on the specific application requirements, offering both automatic and manual start options, three enabling current paths, and a 1-channel operation, powered by a 24V DC supply, utilizing a pluggable push-in terminal block for convenient installation.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Degree of Protection
IP20
Safety Connection Method
Push-In Connection
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 1
Safety Relay Supply Voltage
24 Volt
Features
Manually monitored and automatic activation in a single device
Depending on the application, up to cat. 4/PL e in accordance with ISO 13849-1, SIL CL 3 in accordance with EN IEC 62061
Low housing width of just 12.5 mm
Up to Cat. 1/PL c in accordance with EN ISO 13849-1, SIL 1 in accordance with EN IEC 62061
3 enabling current paths, 1 digital signal output
1-channel control
