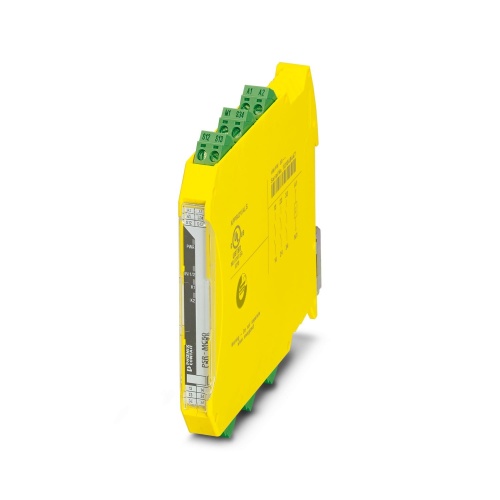

Phoenix Contact 2700553 Safety relays PSR-MC50-3NO-1DO-24DC-SC
Normally In Stock
Code: 72914
PSR-MC50-3NO-1DO-24DC-SC Phoenix 2700553 Safety relays
Condition: New
Usually ships Same Day or Next Day$217.84
Sale Price
$181.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700553 This safety relay is designed for monitoring non-equivalent signal generators with a maximum SIL rating of 3, Cat. 4, PL e, and features two channels for non-equivalent operation, allowing for either automatic or manual start options, as well as monitored starts, three enabling current paths, and accepts a 24V DC power supply via plug-in screw terminal block.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
3 enabling current paths, 1 digital signal output
Low housing width of just 12.5 mm
Two-channel non-equivalent control
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
Manually monitored and automatic activation in a single device
