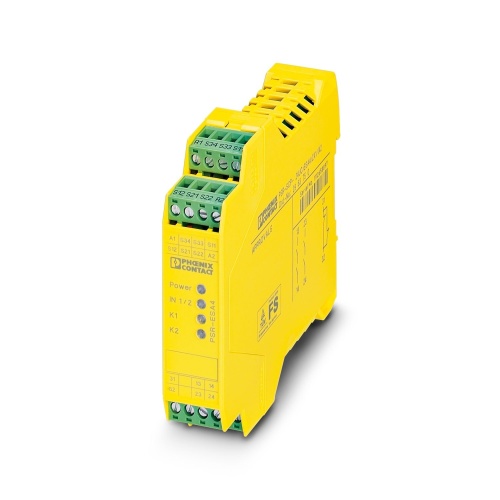

Phoenix Contact 2963750 Safety relays PSR-SCP- 24UC/ESA4/2X1/1X2
Normally In Stock
Code: 72911
PSR-SCP- 24UC/ESA4/2X1/1X2 Phoenix 2963750 Safety relays
Condition: New
Usually ships Same Day or Next Day$341.88
Sale Price
$284.90
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2963750 A safety relay suitable for emergency stop and safety door monitoring can be used up to SIL level 3 or Category 4, meeting the EN ISO 13849 standard, with a 2-channel operation and providing two enabling current paths. It operates at a nominal input voltage of 24V DC and features a plug-in screw terminal block for easy connection.
Specifications
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
2 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Input Voltage
24 Volt
Features
Manually monitored and automatic activation in a single device
2-channel
2 enabling current paths, 1 signaling current path
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
