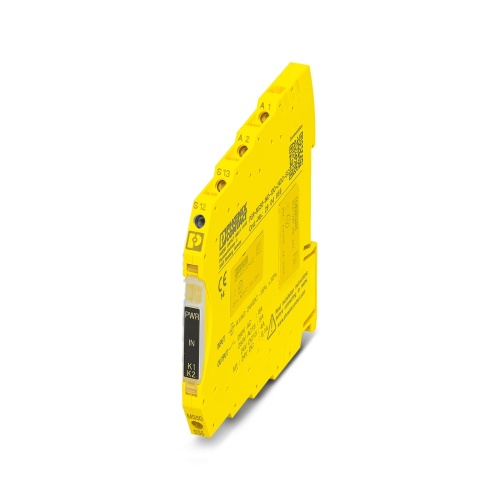

Phoenix Contact 2904956 Safety relays PSR-MS50-1NO-1DO-24DC-SC
Normally In Stock
Code: 72896
PSR-MS50-1NO-1DO-24DC-SC Phoenix 2904956 Safety relays
Condition: New
Usually ships Same Day or Next Day$185.95
Sale Price
$154.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2904956 A safety relay designed to monitor non-equivalent signal generators can operate at SIL levels up to 3, fall under Category 4 and PL e protection, features a 2-channel setup for non-equivalent operation, has an automatic start function, one enabling current path, requires a US voltage of 24V DC, and comes with a fixed screw terminal block.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
1 Enabling Current Path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
1 enabling current path, 1 digital signal output
Low housing width of just 6.8 mm
Two-channel non-equivalent control
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
Automatic activation
