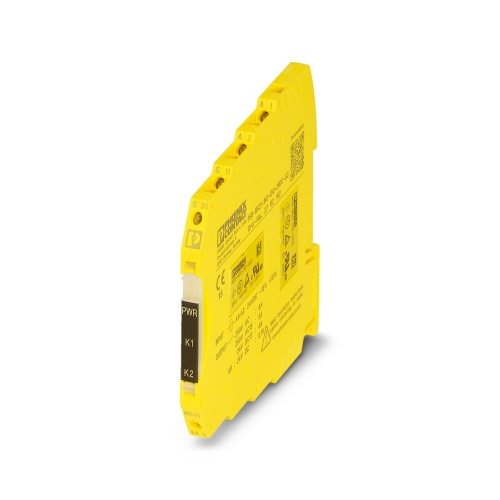

Phoenix Contact 2702192 Safety relays PSR-MS21-1NO-1DO-24DC-SC
Normally In Stock
Code: 72895
PSR-MS21-1NO-1DO-24DC-SC Phoenix 2702192 Safety relays
Condition: New
Usually ships Same Day or Next Day$152.75
Sale Price
$127.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2702192 A safety relay designed for failsafe controllers is available for up to SIL level 3, Cat. 4, and PL e protection levels, supporting single-channel operation and features an autostart function, as well as a single enabling current path. It also operates at a standard voltage of 24 V DC in compliance with IEC 61131-6 standards, utilizing a fixed screw terminal block for connectivity.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
1 Enabling Current Path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
1 enabling current path, 1 digital signal output
Low housing width of just 6.8 mm
1-channel control
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061

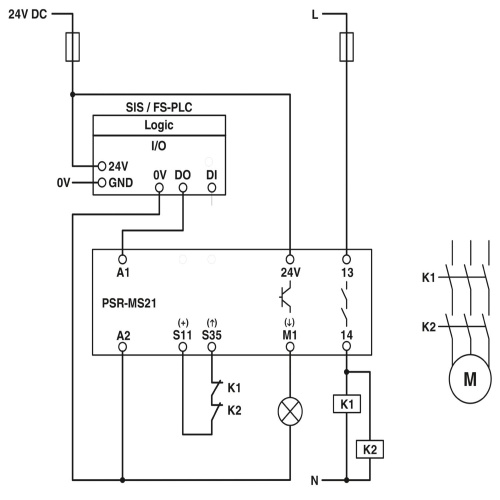

Couples digital output signals from failsafe controllers to I/O devices (valves, etc.) for electrical isolation and power adaptation
Automatic activation
