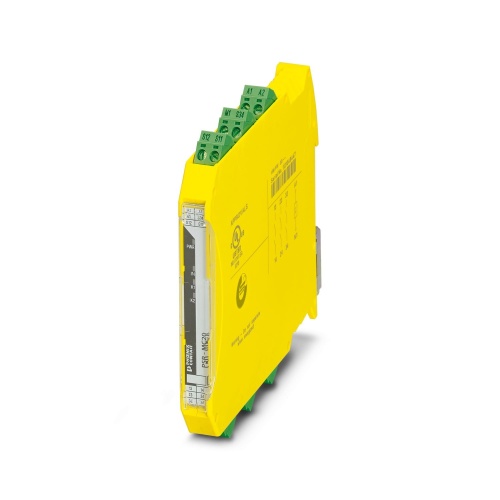

Phoenix Contact 2700466 Safety relays PSR-MC20-3NO-1DO-24DC-SC
Normally In Stock
Code: 72890
PSR-MC20-3NO-1DO-24DC-SC Phoenix 2700466 Safety relays
Condition: New
Usually ships Same Day or Next Day$212.51
Sale Price
$177.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700466 Safety relays for emergency stops and safety doors offer varying levels of protection depending on the application, ranging from SIL 1 to SIL 3, Cat 1 to Cat 4, and PL c to PL e. They are typically 1-channel operated and can be started automatically or manually. Additionally, they have three enabling current paths and come with a plug-in screw terminal block that accepts US power at 24V DC.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 1
Safety Relay Supply Voltage
24 Volt
Features
Manually monitored and automatic activation in a single device
Depending on the application, up to cat. 4/PL e in accordance with ISO 13849-1, SIL CL 3 in accordance with EN IEC 62061
Low housing width of just 12.5 mm
Up to Cat. 1/PL c in accordance with EN ISO 13849-1, SIL 1 in accordance with EN IEC 62061
3 enabling current paths, 1 digital signal output
1-channel control
