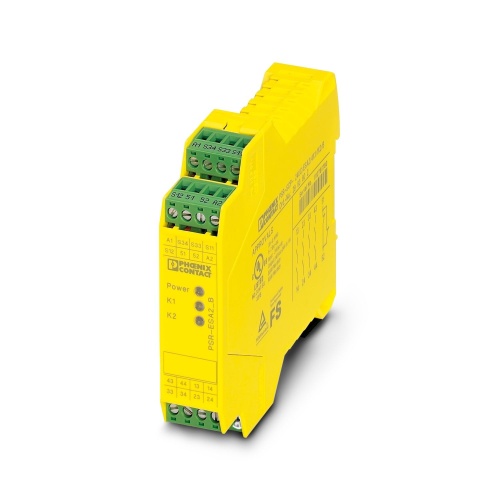

Phoenix Contact 2963802 Safety relays PSR-SCP- 24UC/ESA2/4X1/1X2/B
Normally In Stock
Code: 72871
PSR-SCP- 24UC/ESA2/4X1/1X2/B Phoenix 2963802 Safety relays
Condition: New
Usually ships Same Day or Next Day$213.46
Sale Price
$177.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

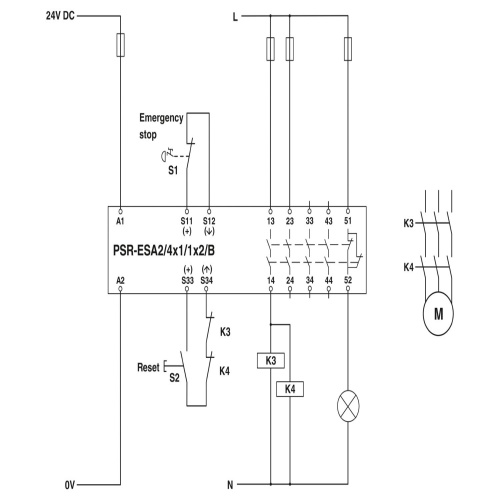

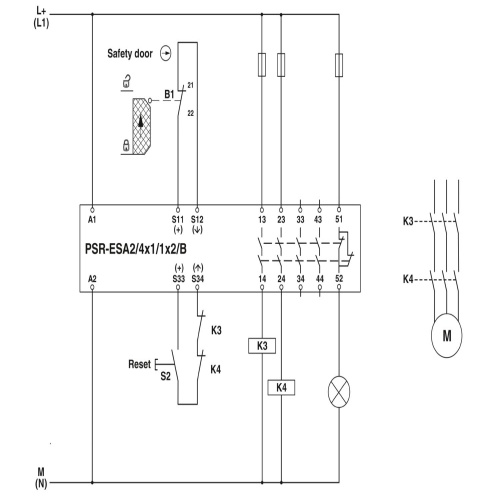

Phoenix Contact 2963802 A safety relay is available for emergency stop and safety door applications, offering SIL levels from 1 to 3 and Cat ratings from 1 to 4, depending on the specific requirements of the application, with a single-channel operation and four enabling current paths, powered by a 24V DC input via plug-in screw terminal blocks.
Specifications
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
4 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 1
Safety Relay Supply Voltage
24 Volt
Features
1-channel control
Depending on the application, up to Cat. 4/PL e in accordance with ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
Basic insulation
Up to Cat. 1/PL c in accordance with ISO 13849-1, SIL 1 in accordance with EN IEC 62061, SIL 1 in accordance with IEC 61508
Code: 72871
Phoenix Contact 2963802 Safety relays PSR-SCP- 24UC/ESA2/4X1/1X2/B
