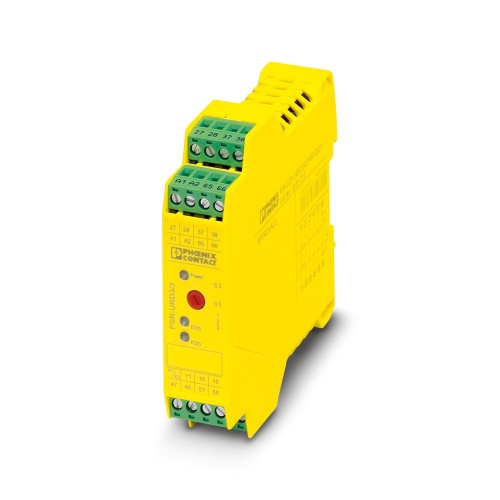

Phoenix Contact 2981732 Extension module PSR-SCP- 24DC/URD3/4X1/2X2/3
Normally In Stock
Code: 72855
PSR-SCP- 24DC/URD3/4X1/2X2/3 Phoenix 2981732 Extension module
Condition: New
Usually ships within 7-14 days. Call for ship time.$473.06
Sale Price
$394.22
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2981732 A 1-channel contact extension has a TBUS interface, featuring four normally open (N/O) contacts and one normally closed (N/C) contact, along with a confirmation current path that also includes an off-delay range of 0.3 to 3 seconds, conforming to Category 3 safety standard EN ISO 13849, and consists of plug-in terminal blocks with screw connections measuring 22.5mm in width.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Interfaces
TBUS
Safety Contact Type
4 Delayed Enabling Current Paths
Safety Contact Type
1 Delayed Signaling Current Path
Safety Contact Type
1 Delayed Confirmation Current Path
Component
Extension Module
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 3
Safety Input Voltage
24 Volt
Features
Up to Cat. 3/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
