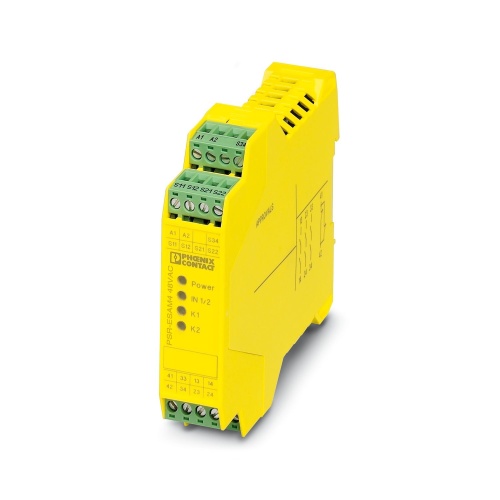

Phoenix Contact 2901428 Safety relays PSR-SCP-230UC/ESAM4/3X1/1X2/B
Normally In Stock
Code: 72854
PSR-SCP-230UC/ESAM4/3X1/1X2/B Phoenix 2901428 Safety relays
Condition: New
Usually ships Same Day or Next Day$385.26
Sale Price
$321.05
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2901428 A safety relay can be used to control emergency stops and monitor safety doors up to SIL level 3 or Category 4, as per EN ISO 13849. It is available in either a one- or two-channel configuration, featuring three enabling current paths and accepting nominal input voltages of 230V AC/DC. The device also includes plug-in screw terminal blocks for convenient connection setup.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Input Voltage
230 Volt
Features
1- and 2-channel control
Manually monitored and automatic activation in a single device
Basic insulation
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
3 enabling current paths, 1 signaling current path
