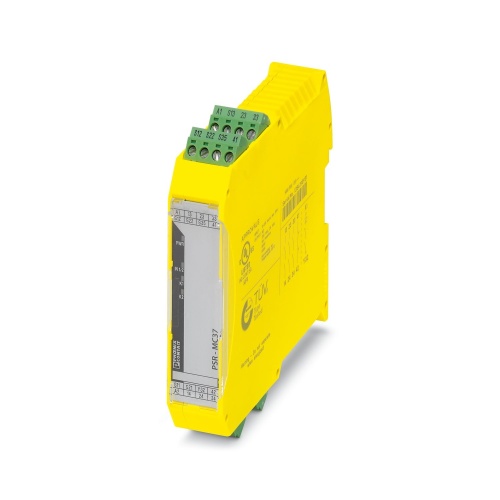

Phoenix Contact 2702411 Safety relays PSR-MC37-3NO-1NC-24DC-SC
Normally In Stock
Code: 72849
PSR-MC37-3NO-1NC-24DC-SC Phoenix 2702411 Safety relays
Condition: New
Usually ships within 7-14 days. Call for ship time.$345.34
Sale Price
$287.78
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2702411 A safety relay is designed for emergency shutdown and safety doors, as well as for elevator applications that require SIL 3, Cat 4, PL e, 1 or 2-channel operation, with options for automatic or manual start. It also features cross-circuit detection and three enabling current paths, utilizing a power supply of 24V DC from a plug-in screw terminal block.
Specifications
Safety Contact Type
3 Enabling Current Paths
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Relay Supply Voltage
24 Volt
Features
Automatic and manual activation
3 enabling current paths, 1 signaling current path, 1 digital signal output
Cross-circuit detection
Low housing width of only 22.5mm
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061
Suitable for elevator applications in accordance with EN 81-20
