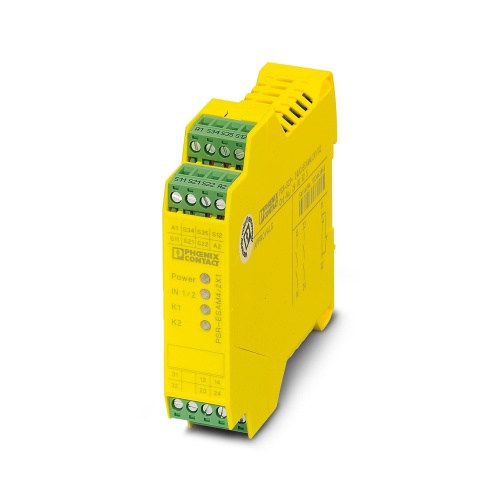

Phoenix Contact 2900525 Safety relays PSR-SCP- 24UC/ESAM4/2X1/1X2
Normally In Stock
Code: 72848
PSR-SCP- 24UC/ESAM4/2X1/1X2 Phoenix 2900525 Safety relays
Condition: New
Usually ships within 7-14 days. Call for ship time.$290.72
Sale Price
$242.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2900525 A safety relay suitable for applications requiring emergency stop and safety door monitoring up to SIL 3 or Cat. 4, with a PL e rating in line with EN ISO 13849, offers 2-channel operation and features 2 enabling current paths. The nominal input voltage is 24 VDC, and it includes a plug-in screw terminal block for convenient connection.
Specifications
Safety Contact Type
1 Signaling Current Path
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
2 Enabling Current Paths
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 4
Safety Input Voltage
24 Volt
Features
2 channel control
Manually monitored and automatic activation in a single device
Reinforced insulation
Up to Cat. 4/PL e in accordance with EN ISO 13849-1, SIL 3 in accordance with EN IEC 62061, SIL 3 in accordance with IEC 61508
2 enabling current paths, 1 signaling current path
Code: 72848
Phoenix Contact 2900525 Safety relays PSR-SCP- 24UC/ESAM4/2X1/1X2
