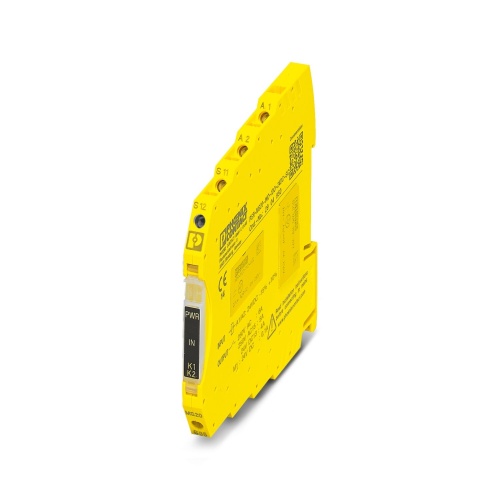

Phoenix Contact 2904950 Safety relays PSR-MS20-1NO-1DO-24DC-SC
Normally In Stock
Code: 72841
PSR-MS20-1NO-1DO-24DC-SC Phoenix 2904950 Safety relays
Condition: New
Usually ships Same Day or Next Day$148.70
Sale Price
$123.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2904950 The safety relay is designed for emergency stop and safety doors, suitable for applications requiring SIL levels 1 to 3 and Category 1 to 4 protection, depending on the specific requirements, offering single-channel operation with automatic start functionality and a single enabling current path, powered by a 24V DC supply.
Specifications
Safety Connection Method
Screw Connection
Safety Degree of Protection
IP20
Safety Contact Type
1 Enabling Current Path
Component
Safety Relay
Manufacturer
Phoenix Contact
Safety Relay Safety Level
SIL Cat 1
Safety Relay Supply Voltage
24 Volt
Features
1 enabling current path, 1 digital signal output
Low housing width of just 6.8 mm
1-channel control
Depending on the application, up to cat. 4/PL e in accordance with ISO 13849-1, SIL CL 3 in accordance with EN IEC 62061
Automatic activation
Downloads
Code: 72841
Phoenix Contact 2904950 Safety relays PSR-MS20-1NO-1DO-24DC-SC
