Phoenix Contact 2708261 FO converters PSI-MOS-PROFIB/FO 850 T
Normally In Stock
Code: 72692
PSI-MOS-PROFIB/FO 850 T Phoenix 2708261 PROFIBUS acc. to IEC 61158, RS-485 2-wire, half duplex, automatic control,PROFIBUS COMBICON plug-in screw terminal block,D-SUB-9 female connector,B-FOC (ST) PA 6.6-FR FO converters FO converters
Condition: New
Usually ships within 7-14 days. Call for ship time.$1440.88
Sale Price
$1200.73
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

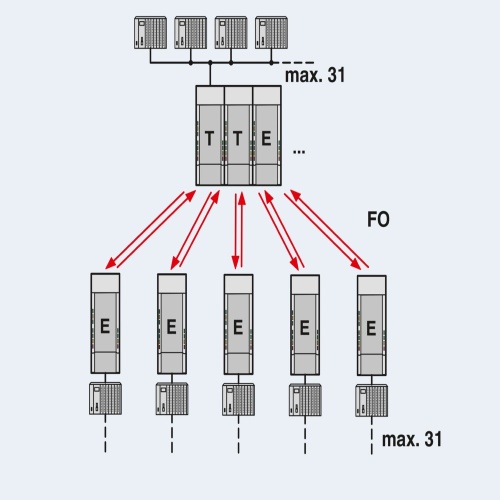

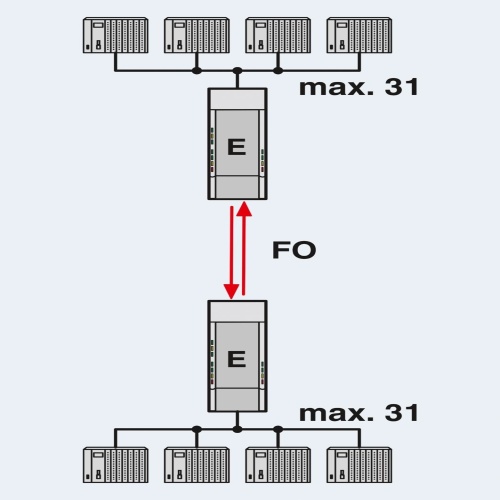

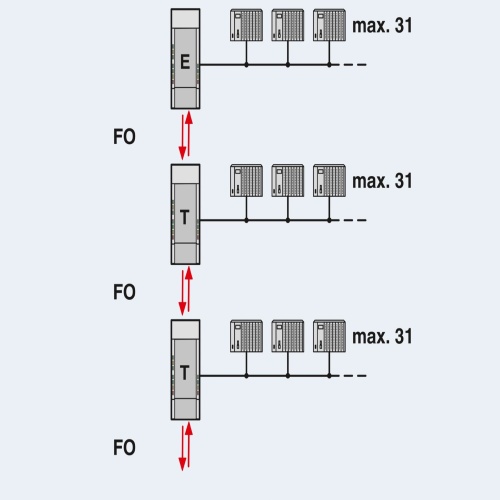

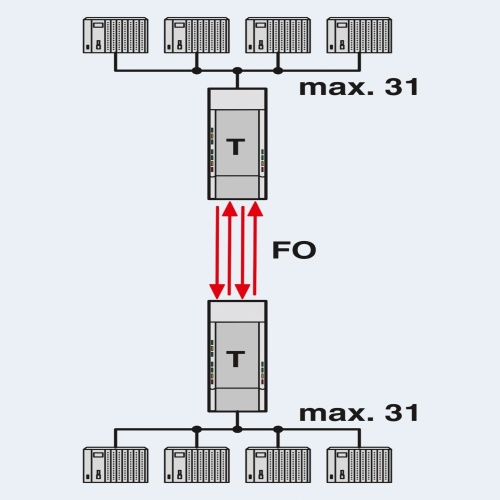

Phoenix Contact 2708261 A FO converter is available featuring integrated optical diagnostics and an alarm contact, designed for use with PROFIBUS at speeds of up to 12 Mbps. This device comes equipped with a T-coupler that supports two FO interfaces, utilizing a wavelength of 850 nm, and is compatible with PCF/fiberglass cable in multimode configuration.
Specifications
Communication Ambient Temperature
-20 °C - 60 °C
Communication Approval
CE:CE-Compliant
Communication Approval
Corrosive Gas Test:ISA-S71.04-1985 G3 Harsh Group A
Communication Approval
UL
Communication Approval
USA-Canada:Class I
Communication Approval
Zone 2
Communication Approval
Div. 2
Communication Approval
Groups A
Communication Approval
B
Communication Approval
C
Communication Approval
D
Communication Approval
EAC:EAC
Communication Approval
ATEX: II 3 G Ex Na Nc IIC T4 Gc X
Communication Connection Method
COMBICON Plug-In Screw Terminal Block
Communication Interface
PROFIBUS Acc. To IEC 61158
Communication Interface
RS-485 2-Wire
Communication Interface
Half Duplex
Communication Interface
Automatic Control
Communication Connection Method
D-SUB-9 Female Connector
Communication Transmission Length
With Shielded
Communication Transmission Length
Twisted Pair Data Cable)
Communication Interface
PROFIBUS
Communication Approval
Shipbuilding:DNV GL
Communication Approval
ATEX: II (2) D [Ex Op Is Db] IIIC
Communication Approval
ATEX: II (2) G [Ex Op Is Gb] IIC
Communication Transmission Medium
Copper
Communication Approval
Aex Nc IIC T5
Communication Approval
Ex Nc Nl IIC T5 X
Communication Connection Method
B-FOC (ST)
Communication Transmission Length
≤ 1200 M (Depending On The Data Rate
Component
Media Converter
Manufacturer
Phoenix Contact
Communication Equipment Type
Unmanaged
Communication Degree of Protection
IP20
Features
Automatic data rate detection or fixed data rate setting via DIP switches
Supply voltage and data signals routed through the DIN rail connectors
Connections can be plugged in via a COMBICON screw terminal block

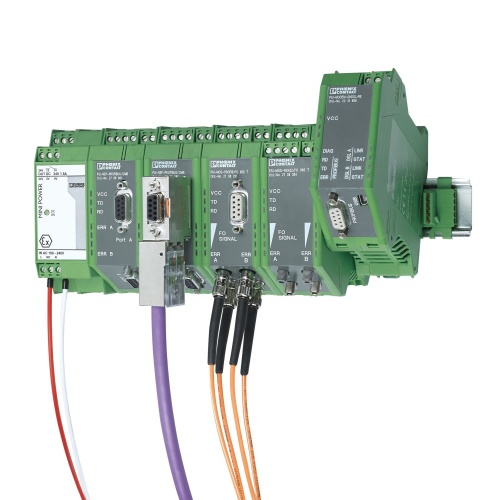

Can be combined with the PSI copper repeater in a modular way using DIN rail connectors
Redundant power supply
High-quality electrical isolation between all interfaces (PROFIBUS // fiber optic ports // power supply // DIN rail connector)
Approved for use in zone 2
Integrated optical diagnostics for continuous monitoring of FO paths
Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
Floating switch contact for advance warning of critical FO paths
Suitable for all data rates up to 12 Mbps
Bit retiming for any cascading depth
Shipbuilding approval in accordance with DNV GL
