Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 72689

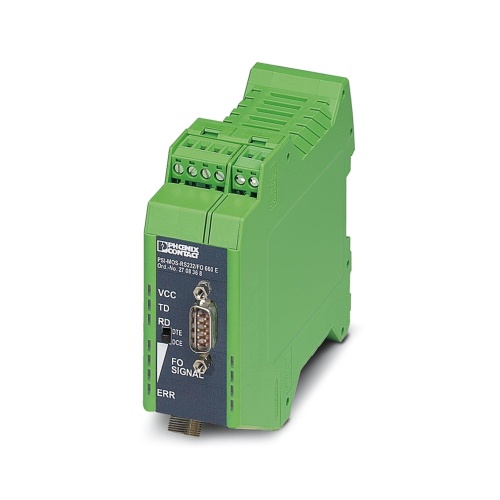

Phoenix Contact 2708368 FO converters PSI-MOS-RS232/FO 660 E
Normally In Stock
PSI-MOS-RS232/FO 660 E Phoenix 2708368 V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 COMBICON plug-in screw terminal block,D-SUB 9 plug,F-SMA PA 6.6-FR FO converters FO converters
Condition: New
Usually ships within 7-14 days. Call for ship time.$627.98
Sale Price
$523.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2708368 A FO converter is a device that can convert fibre optic signals into digital data and vice versa, featuring integrated optical diagnostics, an alarm contact, and support for RS-232 interfaces up to 115.2 kbps. This FO converter also acts as a terminal device, connecting to polymer/PCF fiber cable via one FSMA interface at a wavelength of 660 nm.
Specifications
Communication Ambient Temperature
-20 °C - 60 °C
Communication Approval
CE:CE-Compliant
Communication Approval
Corrosive Gas Test:ISA-S71.04-1985 G3 Harsh Group A
Communication Interface
EIA-TIA-232
Communication Interface
DIN 66259-1
Communication Connection Method
D-SUB 9 Plug
Communication Approval
UL
Communication Approval
USA-Canada:Class I
Communication Approval
Zone 2
Communication Approval
Div. 2
Communication Approval
Groups A
Communication Approval
B
Communication Approval
C
Communication Approval
D
Communication Approval
EAC:EAC
Communication Approval
ATEX: II 3 G Ex Na Nc IIC T4 Gc X
Communication Connection Method
COMBICON Plug-In Screw Terminal Block
Communication Approval
Shipbuilding:DNV GL
Communication Approval
ATEX: II (2) D [Ex Op Is Db] IIIC
Communication Approval
ATEX: II (2) G [Ex Op Is Gb] IIC
Communication Transmission Medium
Copper
Communication Approval
Aex Nc IIC T5
Communication Approval
Ex Nc Nl IIC T5 X
Communication Connection Method
F-SMA
Communication Transmission Length
≤ 15 M
Component
Media Converter
Manufacturer
Phoenix Contact
Communication Equipment Type
Unmanaged
Communication Degree of Protection
IP20
Communication Interface
V.24 (RS-232) Interface In Acc. With ITU-T V.28
Features
High-quality electrical isolation between all interfaces (RS-232 // fiber optic ports // power supply // DIN rail connector)
Connections can be plugged in via a COMBICON screw terminal block
Redundant power supply possible by means of optional system power supply unit
Supply voltage and data signals routed through the DIN rail connectors
Approved for use in zone 2
Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
Integrated optical diagnostics for continuous monitoring of FO paths
Floating switch contact for advance warning of critical FO paths
Automatic data rate detection for all data rates up to 115.2 kbps
Shipbuilding approval in accordance with DNV GL
Downloads
dxf file.dxfGlasfaser-Konfektion_de.mpg.crdownloadGlassfiber-Assembly_en.mpg.crdownloadPhoenix 2708368 Application Note English-2.pdfPhoenix 2708368 Application Note English-3.pdfPhoenix 2708368 Application Note English.pdfPhoenix 2708368 CAD data International.dxfPhoenix 2708368 CAD data International.stpPhoenix 2708368 Data Sheet English-2.pdfPhoenix 2708368 Data Sheet English.pdfPhoenix 2708368 Manufacturers declaration English.pdfPhoenix 2708368 Manufacturers declaration International-2.pdfPhoenix 2708368 Manufacturers declaration International-3.pdfPhoenix 2708368 Manufacturers declaration International-4.pdfPhoenix 2708368 Manufacturers declaration International-5.pdfPhoenix 2708368 Manufacturers declaration International-6.pdfPhoenix 2708368 Manufacturers declaration International.pdfPhoenix 2708368 Package Slip International.pdfPhoenix 2708368 Tender Text English.zipPhoenix 2708368 Various English.mpgPOF-Konfektion_de.mpg.crdownloadPolymerfiber_Assembly_en.mpg.crdownloadPSI-MOS-System_de.mpg.crdownloadPSI-MOS-System_en.mpg.crdownloadvideo_ plug assembly on a pcf-_pcf fiber.mpgvideo_ plug assembly on a pcf-_pcf fiber.stpvideo_ the modular fiber-optic system psi-mos.mpg
