Code: 72688

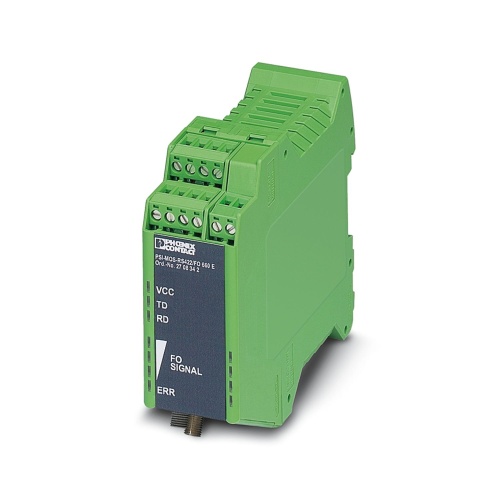

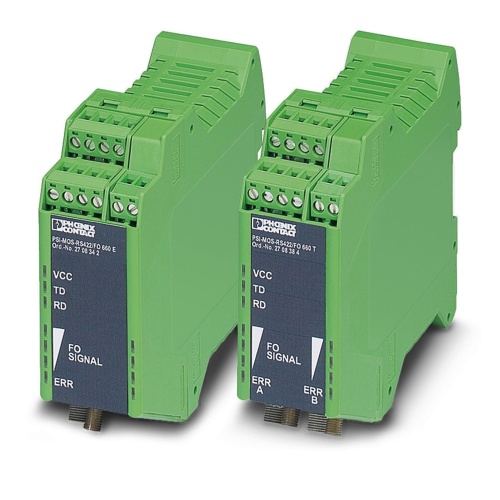

Phoenix Contact 2708342 FO converters PSI-MOS-RS422/FO 660 E
Normally In Stock
PSI-MOS-RS422/FO 660 E Phoenix 2708342 RS-422 interface in acc. with ITU-T V.11, EIA/TIA-422, DIN 66348-1 COMBICON plug-in screw terminal block,Pluggable screw connection,F-SMA PA 6.6-FR FO converters INTERBUS FO converters
Condition: New
Usually ships Same Day or Next Day$627.98
Sale Price
$523.32
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

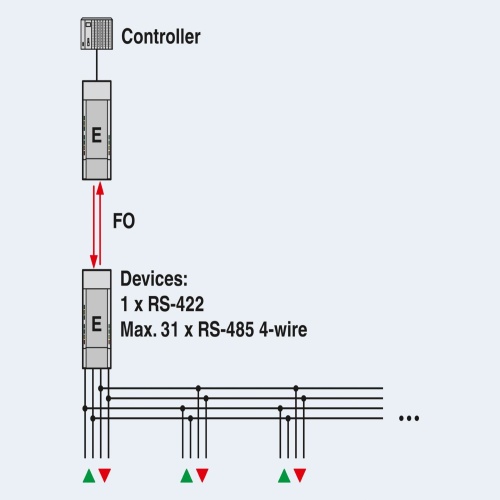

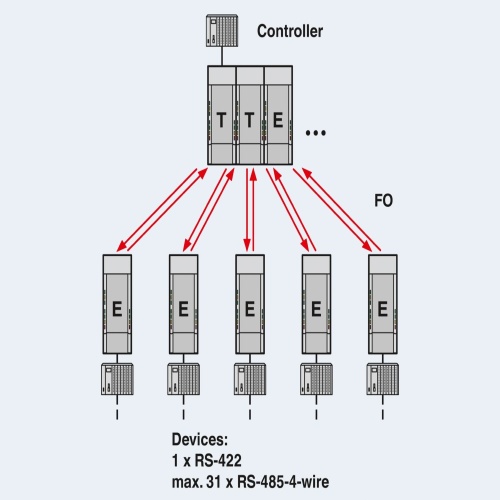

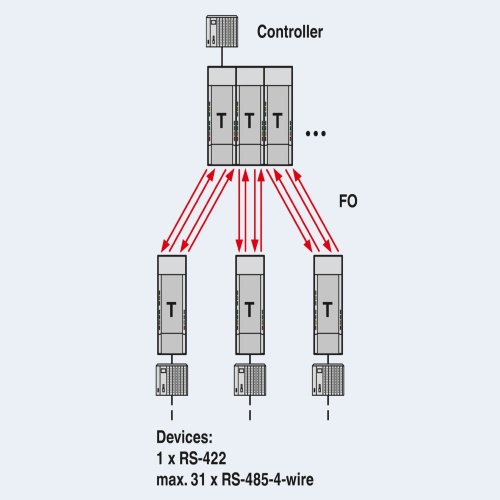

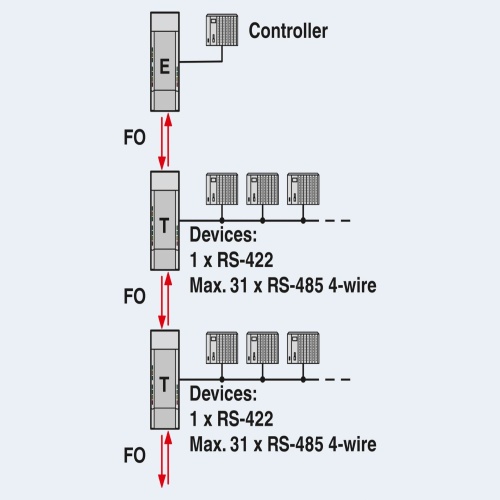

Phoenix Contact 2708342 A FO converter with integrated optical diagnostics and alarm contact is available, designed to work with RS-422/RS-485 4-wire/INTERBUS interfaces at data rates of up to 2 Mbps. It also features a single FO interface (FSMA) for connecting to polymer or PCF fiber cable, operating at 660 nm wavelength.
Specifications
Communication Ambient Temperature
-20 °C - 60 °C
Communication Approval
CE:CE-Compliant
Communication Approval
Corrosive Gas Test:ISA-S71.04-1985 G3 Harsh Group A
Communication Approval
UL
Communication Approval
USA-Canada:Class I
Communication Approval
Zone 2
Communication Approval
Div. 2
Communication Approval
Groups A
Communication Approval
B
Communication Approval
C
Communication Approval
D
Communication Approval
EAC:EAC
Communication Approval
ATEX: II 3 G Ex Na Nc IIC T4 Gc X
Communication Interface
RS-422 Interface In Acc. With ITU-T V.11
Communication Interface
EIA-TIA-422
Communication Interface
DIN 66348-1
Communication Connection Method
COMBICON Plug-In Screw Terminal Block
Communication Transmission Length
With Shielded
Communication Approval
Shipbuilding:DNV GL
Communication Connection Method
Pluggable Screw Connection
Communication Approval
ATEX: II (2) D [Ex Op Is Db] IIIC
Communication Approval
ATEX: II (2) G [Ex Op Is Gb] IIC
Communication Transmission Medium
Copper
Communication Approval
Aex Nc IIC T5
Communication Approval
Ex Nc Nl IIC T5 X
Communication Transmission Length
Twisted Data Cable)
Communication Type
INTERBUS
Communication Transmission Length
≤ 1000 M (Depending On The Data Rate
Communication Connection Method
F-SMA
Component
Media Converter
Manufacturer
Phoenix Contact
Communication Equipment Type
Unmanaged
Communication Degree of Protection
IP20
Features
High-quality electrical isolation between all interfaces (INTERBUS // FO ports // supply // DIN rail connector)
Connections can be plugged in via a COMBICON screw terminal block
Redundant power supply possible by means of optional system power supply unit
Supply voltage routed through via DIN rail connectors
Approved for use in zone 2
Floating switch contact for advance warning of critical FO paths
Integrated optical diagnostics for continuous monitoring of FO paths
Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
Automatic data rate detection for all data rates up to 2 Mbps
Shipbuilding approval in accordance with DNV GL
