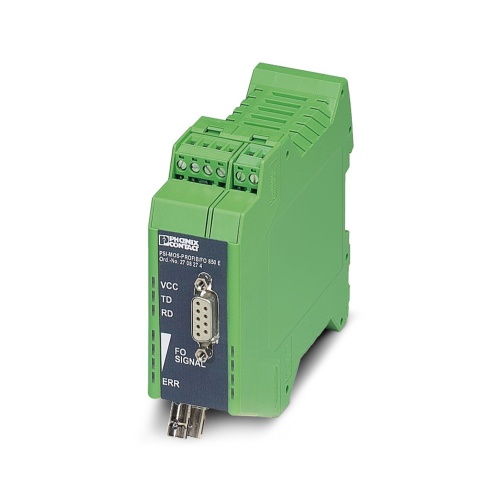

Phoenix Contact 2708711 FO converters PSI-MOS-PROFIB/FO 850 E-SO
Normally In Stock
Code: 72681
PSI-MOS-PROFIB/FO 850 E-SO Phoenix 2708711 PROFIBUS acc. to IEC 61158, RS-485 2-wire, half duplex, automatic control COMBICON plug-in screw terminal block,D-SUB-9 female connector,B-FOC (ST) PA 6.6-FR FO converters FO converters
Condition: New
Usually ships Same Day or Next Day$1177.00
Sale Price
$980.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

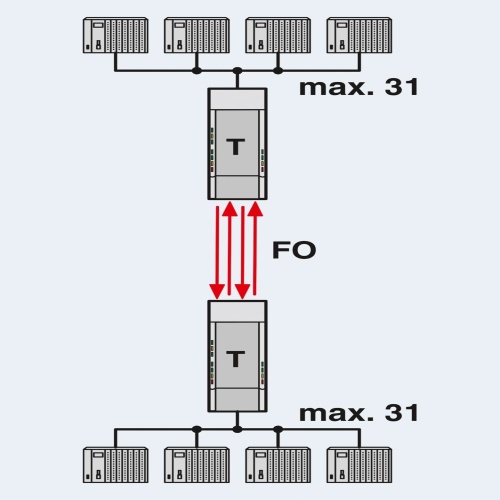

Phoenix Contact 2708711 A device that combines a Fiber Optic (FO) converter with integrated optical diagnostics features an alarm contact, is designed for use with PROFIBUS networks up to 12 Mbps, and includes a T-coupler with two FO interfaces that can operate at 850nm, suitable for use with PCF or fiberglass cables in multimode applications.
Specifications
Communication Ambient Temperature
-20 °C - 60 °C
Communication Approval
CE:CE-Compliant
Communication Approval
Corrosive Gas Test:ISA-S71.04-1985 G3 Harsh Group A
Communication Approval
UL
Communication Approval
USA-Canada:Class I
Communication Approval
Zone 2
Communication Approval
Div. 2
Communication Approval
Groups A
Communication Approval
B
Communication Approval
C
Communication Approval
D
Communication Approval
ATEX: II 3 G Ex Na Nc IIC T4 Gc X
Communication Connection Method
COMBICON Plug-In Screw Terminal Block
Communication Interface
PROFIBUS Acc. To IEC 61158
Communication Interface
RS-485 2-Wire
Communication Interface
Half Duplex
Communication Interface
Automatic Control
Communication Connection Method
D-SUB-9 Female Connector
Communication Transmission Length
With Shielded
Communication Transmission Length
Twisted Pair Data Cable)
Communication Approval
Shipbuilding:DNV GL
Communication Approval
ATEX: II (2) D [Ex Op Is Db] IIIC
Communication Approval
ATEX: II (2) G [Ex Op Is Gb] IIC
Communication Transmission Medium
Copper
Communication Approval
Aex Nc IIC T5
Communication Approval
Ex Nc Nl IIC T5 X
Communication Connection Method
B-FOC (ST)
Communication Transmission Length
≤ 1200 M (Depending On The Data Rate
Component
Media Converter
Manufacturer
Phoenix Contact
Communication Equipment Type
Unmanaged
Communication Degree of Protection
IP20
Features
Supply voltage and data signals routed through the DIN rail connectors
Connections can be plugged in via a COMBICON screw terminal block
Can be combined with the PSI copper repeater in a modular way using DIN rail connectors
With coated PCB for increased resistance to salt-laden atmospheres
Automatic data rate detection or fixed data rate setting via DIP switches
High-quality electrical isolation between all interfaces (PROFIBUS // fiber optic ports // power supply // DIN rail connector)
Redundant power supply possible by means of optional system power supply unit
Approved for use in zone 2
Integrated optical diagnostics for continuous monitoring of FO paths
Intrinsically safe fiber optic interface (Ex op is) for direct connection to devices in zone 1
Floating switch contact for advance warning of critical FO paths
Suitable for all data rates up to 12 Mbps
Bit retiming for any cascading depth
Shipbuilding approval in accordance with DNV GL
