Phoenix Contact 2700275 Analog module AXL E IOL AI1 I M12 R
Normally In Stock
Code: 72662
AXL E IOL AI1 I M12 R Phoenix 2700275 Axioline,IO-Link Distributed I/O device Axioline Distributed I/O device
Condition: New
Usually ships Same Day or Next Day$187.69
Sale Price
$156.41
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2700275 Axioline IE is a versatile device that enables connection to analog sensors, supporting current ranges from 4 mA to 20 mA. It features M12 connectors and comes in an angled version, providing flexibility for various applications.
Specifications
PLC & IO Network Interface
I/O
PLC & IO Type
Axioline
Manufacturer
Phoenix Contact
Component
Remote I/O
Features
IO-Link specification V1.1.1
1 IO-Link interface
IO-Link A port

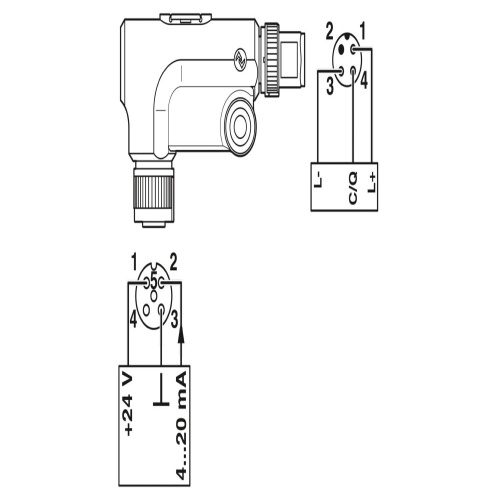

Connection to an IO-Link master with M12 connector (A-coded, 4-pos.)
Angled version
1 analog input
Connection of sensor in 3-conductor technology
Current range: 4 mA ... 20 mA
Functional ground connection for local connection to functional ground
Supply of the module electronics and the sensor via the IO-Link interface of the IO-Link master
Local status indicator
IP65/IP67 degree of protection
Downloads
Phoenix 2700275 CAD data International.dxfPhoenix 2700275 CAD data International.pdfPhoenix 2700275 CAD data International.stpPhoenix 2700275 Data Sheet English.pdfPhoenix 2700275 Device Description English.zipPhoenix 2700275 Manual English.pdfPhoenix 2700275 Manufacturers declaration International.pdfPhoenix 2700275 Package Slip International.pdfPhoenix 2700275 Tender Text English.zipPhoenix 2700275 Various English.pdfproduct drawing.dxfsimplified 3d model of the item.stp
