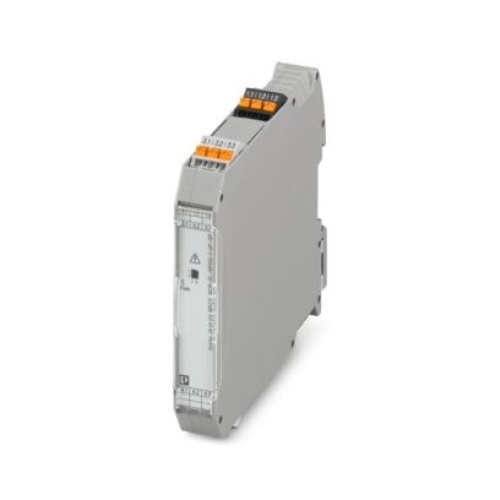

MACX MCR-SL-RPSSI-I-UP-SP Phoenix Contact 2924210 Repeater power supply operation Repeater power supply
MACX MCR-SL-RPSSI-I-UP-SP MACX MCR-SL-RPSSI-I-UP-SP Phoenix Contact 2924210 Repeater power supply operation Repeater power supply
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $530.28
Sale Price:
$435.67
Repeater power supply for supplying 2 and 3-conductor transmitters with HART transmission and wide range power supply, SIL, Push-in connection
| Specifications | |
| Output Signal Type | Voltage |
| Output Signal Type | Current |
| Input Signal Type | Current |
| Input Signal | 0 mA - 20 mA |
| Input Signal | 4 mA - 20 mA |
| Output Signal | 0 V - 5 V |
| Output Signal | 1 V - 5 V |
| Output Signal | 0 mA - 20 mA |
| Output Signal | 4 mA - 20 mA |
| Number of Channels | 1 |
| Interfaces | Repeater power supply operation |
| Supply Voltage | 24 VAC-DC - 230 VAC-DC |
| Manufacturer | Phoenix Contact |
| Ambient Temperature | -20 °C - 60 °C (Any mounting position) |
| Connection Method | Push-in connection |
| Output Signal | Configurable via DIP switches |
| Component | Power Monitors |
| Component | Transducers & Repeaters |
- Wide-range power supply of 19.2 ... 253 V AC/DC
- Up to SIL 2 in accordance with EN 61508
- Installation in zone 2, protection type "n" (EN 60079-15) permitted
- 250 Ω resistor that can be activated via DIP switches to increase HART impedance for low-resistance systems
- 3-way electrical isolation
- Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators
- Input: 0/4 mA ... 20 mA (powered or not powered)
- Bidirectional transmission of digital HART communication signals
- 0/4 ... 20 mA output (active or passive), 0/1 ... 5 V, can be selected via DIP switches
