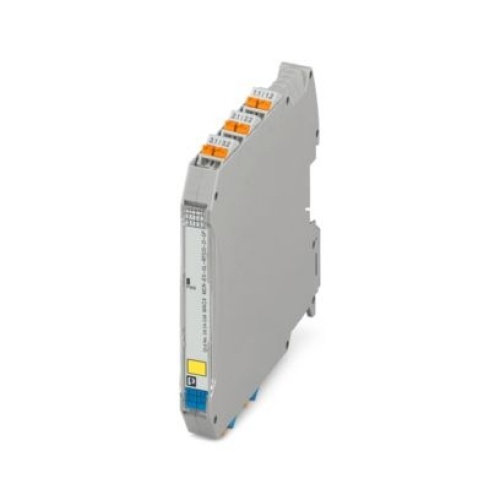

MACX MCR-EX-SL-RPSSI-2I-SP Phoenix Contact 2924236 Input/output/power supply Repeater power supply
MACX MCR-EX-SL-RPSSI-2I-SP MACX MCR-EX-SL-RPSSI-2I-SP Phoenix Contact 2924236 Input/output/power supply Repeater power supply
Normally In Stock! Order now!
Condition: New
Usually ships within 7-14 days. Call for ship time.
Price: $705.36
Sale Price:
$579.53
Ex i measuring transducer power supply and input signal conditioner, HART-transparent. Transfers supplied or active 0/4...20 mA electrical isolation signals from the Ex area to two loads in the safe area. 4-way electrical isolation, Push-in connection, SIL, PL.
| Specifications | |
| Output Signal Type | Current |
| Input Signal Type | Current |
| Input Signal | 4 mA - 20 mA |
| Output Signal | 0 mA - 20 mA |
| Output Signal | 4 mA - 20 mA |
| Number of Channels | 1 |
| Interfaces | Input-output-power supply |
| Input Signal | 0 A - 20 mA |
| Manufacturer | Phoenix Contact |
| Ambient Temperature | -20 °C - 60 °C (Any mounting position) |
| Connection Method | Push-in connection |
| Supply Voltage | 24 VDC |
| Component | Power Monitors |
| Component | Transducers & Repeaters |
- Bidirectional HART transmission (both outputs)
- Measuring transducer supply voltage > 16 V
- Two electrically isolated 0/4 mA ... 20 mA (active) outputs
- 0/4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered and not powered
- Error indication according to NAMUR NE 43
- SIL 2 according to IEC/EN 61508
- Safe electrical isolation between input, outputs, and supply
- Power supply possible via DIN rail connector
- Installation in zone 2 permitted
- Plug-in connection terminals, push-in connection technology

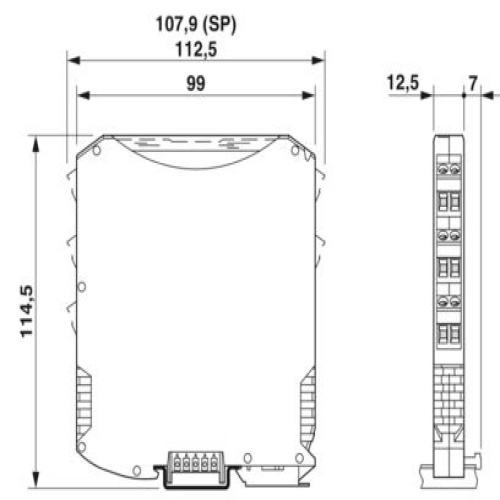

- Housing width: 12.5 mm
- Minimal power dissipation
- High transmission accuracy
