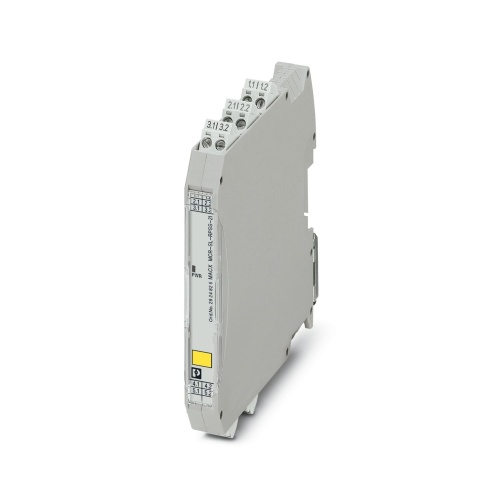

Phoenix Contact 2924825 Repeater power supply MACX MCR-SL-RPSSI-2I
Normally In Stock
Code: 72384
MACX MCR-SL-RPSSI-2I MACX MCR-SL-RPSSI-2I Phoenix Contact 2924825 Repeater power supply operation Repeater power supply
Condition: New
Usually ships within 7-14 days. Call for ship time.$581.86
Sale Price
$484.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2924825 A measuring transducer repeater power supply and input signal conditioner sends electrically isolated signals to two loads, transmitting supplied or active 0 mA/4 mA ... 20 mA signals from the field. The device features a standard configuration with 3-way isolation, meeting safety standards such as SIL 2 and IEC 61508 for SIL, ISO 13849 performance level d/KAT 2, and having a systematic capability of 3. It also includes screw connections and is compatible with HART protocols in its number of channels, available in a 1-channel configuration.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Component
Repeater
Features

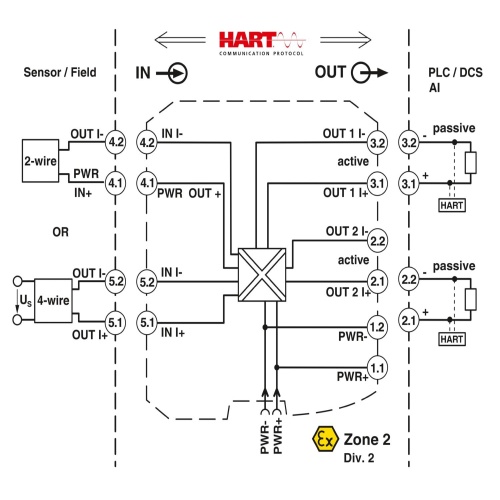

Two electrically isolated 0/4 mA ... 20 mA (active) outputs
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Power supply possible via DIN rail connector

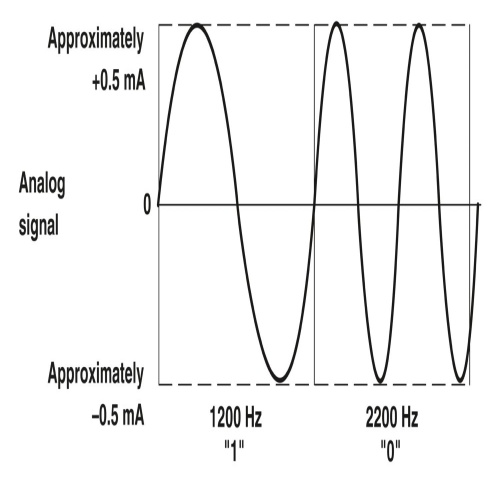

Bidirectional transmission of digital HART communication signals (both outputs)
Plug-in screw or spring-cage connection technology (Push-in technology), with integrated sockets for HART communicators
Input: 0/4 mA ... 20 mA (powered or not powered)
4-way electrical isolation
Downloads
Phoenix 2924825 Application Note English.pdfPhoenix 2924825 CAD data International.dxfPhoenix 2924825 CAD data International.pdfPhoenix 2924825 CAD data International.stpPhoenix 2924825 Certification International.pdfPhoenix 2924825 Data Sheet English.pdfPhoenix 2924825 Manual English.pdfPhoenix 2924825 Manufacturers declaration English.pdfPhoenix 2924825 Manufacturers declaration International-2.pdfPhoenix 2924825 Manufacturers declaration International-3.pdfPhoenix 2924825 Manufacturers declaration International.pdfPhoenix 2924825 Package Slip International.pdfPhoenix 2924825 Tender Text English.zip
