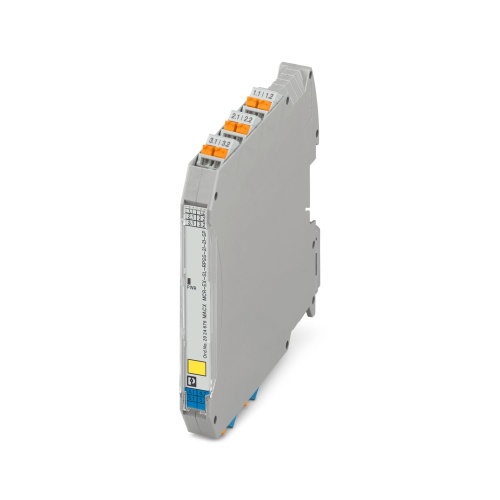

Phoenix Contact 2924676 Repeater power supply MACX MCR-EX-SL-RPSS-2I-2I-SP
Normally In Stock
Code: 72383
MACX MCR-EX-SL-RPSS-2I-2I-SP MACX MCR-EX-SL-RPSS-2I-2I-SP Phoenix Contact 2924676 Input/output, power supply Signal isolator
Condition: New
Usually ships within 7-14 days. Call for ship time.$588.56
Sale Price
$490.47
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

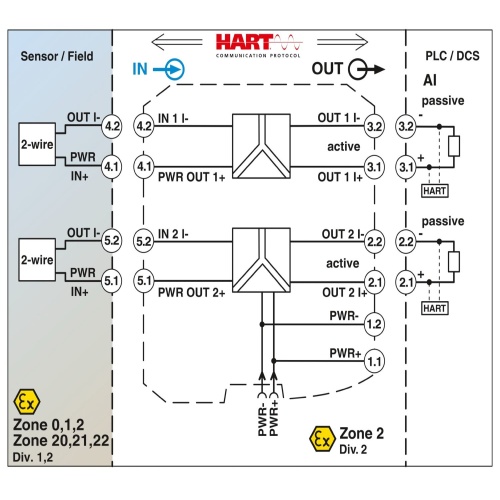

Phoenix Contact 2924676 The power supply unit for a 2-channel Ex i measuring transducer repeater features HART transparency and is designed to transmit a 4…20 mA signal from an hazardous (Ex) area to a safe area via a 5-way electrical isolation connection. It also supports push-in connections, has a SIL 3, PL rating for safety, and supplies up to two Ex i 2-conductor measuring transducers.
Specifications
Component
Isolator
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
2
Conditioner Connection Type
Push-In Connection
Features

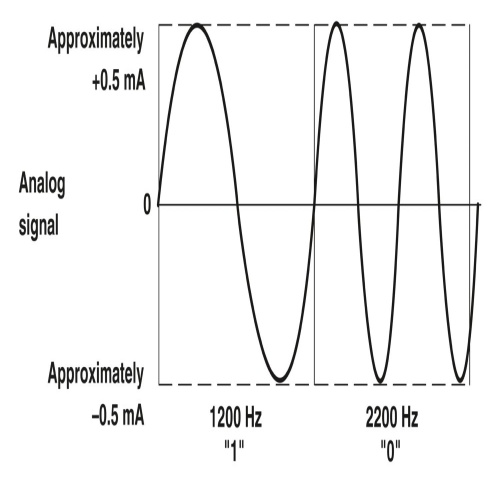

HART-compatible
4 mA ... 20 mA input, intrinsically safe, [Ex ia], powered
Output 4 mA ... 20 mA, active
2-channel
Error indication according to NAMUR NE 43
Up to SIL 3 according to IEC/EN 61508
5-way electrical isolation
Power supply possible via DIN rail connector
Installation in Ex zone 2 permitted
Plug-in connection terminals, push-in connection technology
Housing width: 12.5 mm
Minimal power dissipation
High transmission accuracy
