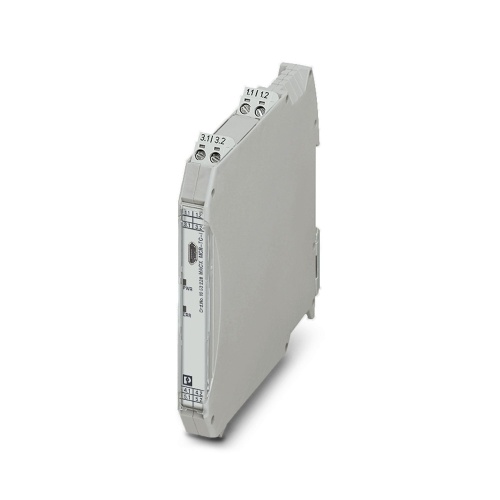

Phoenix Contact 1050228 Temperature measuring transducer MACX MCR-TC-I
Normally In Stock
Code: 72369
MACX MCR-TC-I MACX MCR-TC-I Phoenix Contact 1050228 Input/output/power supply Temperature measuring transducer
Condition: New
Usually ships within 7-14 days. Call for ship time.$392.52
Sale Price
$327.10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1050228 A temperature transducer is a device that can convert analog signals from thermocouples or millivolt (mV) sources into 4-20mA digital signals, allowing for precise measurement and control of temperature levels. This device features flexibility with programming capabilities, three-way electrical isolation to ensure safe operation, easy screw connections, and SIL certification for compliance with international safety standards.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Number of Channels
1
Component
Temperature Transducer
Features
Installation in zone 2, protection type "ec" (EN 60079-7) permitted
Power supply possible via DIN rail connector
Programming possible during operation, when measuring circuit is connected, and also when power is switched off using the IFS-USB-PROG-ADAPTER programming adapter

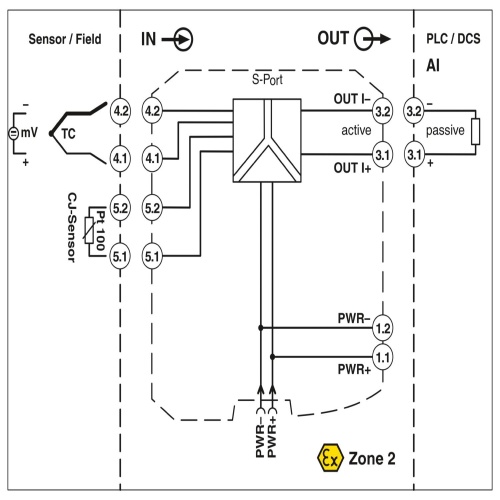

Input for thermocouples and mV sources
3-way electrical isolation
Status indicator for supply voltage, cable, sensor, and module errors
Configuration via software (FDT/DTM): sensor type, connection technology, measuring range, measuring unit, filter, alarm signal, and output range
Output: 0 mA ... 20 mA or 4 mA ... 20 mA
