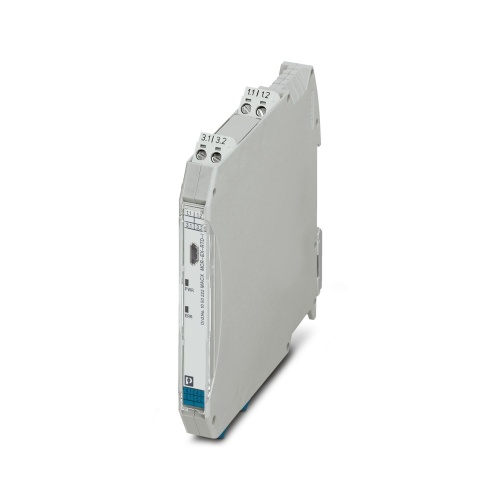

Phoenix Contact 1050222 Temperature measuring transducer MACX MCR-EX-RTD-I
Normally In Stock
Code: 72349
MACX MCR-EX-RTD-I MACX MCR-EX-RTD-I Phoenix Contact 1050222 Input/output/power supply Temperature measuring transducer
Condition: New
Usually ships within 7-14 days. Call for ship time.$399.17
Sale Price
$332.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1050222 An ex temperature transducer is a device that takes readings from resistance temperature detectors located within an explosive or Ex-rated environment and sends a 0-4 mA signal to a load situated in a safer area, such as the non-hazardous zone. This device can be easily programmed for custom settings, features including three-stage isolation, SIL certification, and screw connections, offering standard setup configurations.
Specifications
Conditioner Connection Type
Screw Connection
Manufacturer
Phoenix Contact
Conditioner Supply Voltage
24 VDC
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Number of Channels
1
Component
Temperature Transducer
Features
Installation in zone 2, protection type "ec" (EN 60079-7) permitted
Programming during operation with Ex measuring circuit connected and also voltage-free using IFS-USB-PROG-ADAPTER programming adapter
Input for resistance thermometers and resistance-type sensors, [Ex ia] IIC
Power supply possible via DIN rail connector
3-way electrical isolation
Status indicator for supply voltage, cable, sensor, and module errors
Configuration via software (FDT/DTM): sensor type, connection technology, measuring range, measuring unit, filter, alarm signal, and output range
Output: 0 mA ... 20 mA or 4 mA ... 20 mA
