Code: 723449

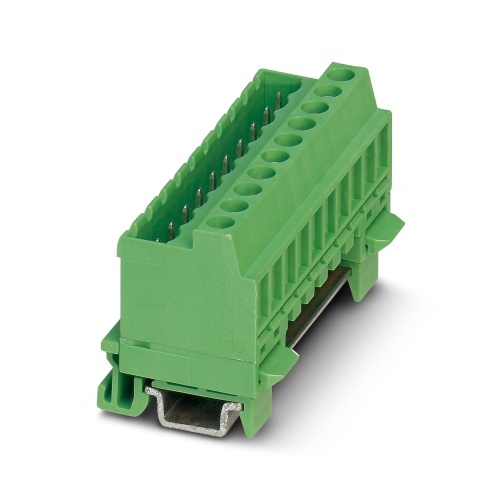

Phoenix Contact 1788949 DIN rail connector MSTBVK 2,5/24-G-5,08
Normally In Stock
Phoenix Contact MSTBVK 2,5/24-G-5,08 - DIN rail connector, 24 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1788949
Condition: New
Usually ships Same Day or Next Day$97.62
Sale Price
$81.35
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1788949 The DIN rail connector has a nominal cross section of 2.5mm² and a green color, supporting a maximum current of 12A at a rated voltage of 320V (III/2). It features a Sn contact surface with a pin connection type, accommodating 24 potentials across one row of 24 positions, connected via screw connections with tension sleeves, suitable for COMBICON MSTB 2,5 systems. The connector has no locking mechanism and can be mounted without any additional parts, packaged in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Component
DIN Rail Connector
Manufacturer
Phoenix Contact
Number of Connections
24
Number of Positions
24
Connector Pitch
5.08 mm
Features
Direct plug-in block for mounting on NS 15 DIN rail
Can be combined with the MSTB 2,5 range
Well-known connection principle allows worldwide use
