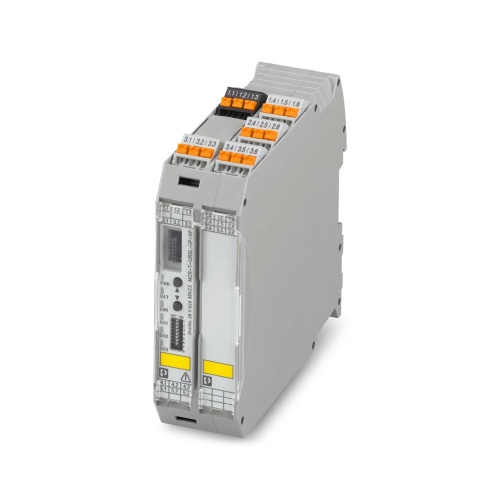

Phoenix Contact 2811828 Temperature measuring transducer MACX MCR-T-UIREL-UP-SP
Normally In Stock
Code: 72340
MACX MCR-T-UIREL-UP-SP MACX MCR-T-UIREL-UP-SP Phoenix Contact 2811828 Input/output/power supply Temperature measuring transducer
Condition: New
Usually ships Same Day or Next Day$660.20
Sale Price
$550.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2811828 A temperature measuring transducer with programmable capabilities features an analog output and comes equipped with three limit value relays, available in various configurations including resistance thermometers with different conductor counts, as well as thermocouples, allowing for a wide range of supply options, all within standard safety and performance parameters.
Specifications
Manufacturer
Phoenix Contact
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Connection Type
Push-In Connection
Component
Temperature Transducer
Conditioner Output Signal Range
22 Ma
Conditioner Output Signal Range
± 11 Volt
Features
Up to SIL 2 in accordance with EN 61508
Configuration via software (FDT/DTM) or IFS-OP-UNIT operator interface and display unit
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Cold junction compensation with separate plug
Plug-in screw or spring-cage connection technology (Push-in technology)
Three limit value relays, can be used in combination as a safe limit value relay
Programming during operation and also voltage-free using IFS-USB-PROG-ADAPTER programming adapter
Input for resistance thermometers, thermocouples, resistance-type sensors, potentiometers, and mV sources
Measure differential temperatures
Freely programmable input and output
Inverse output signal ranges as an option
Downloads
Phoenix 2811828 Application Note English.pdfPhoenix 2811828 CAD data International.dxfPhoenix 2811828 CAD data International.pdfPhoenix 2811828 CAD data International.stpPhoenix 2811828 Certification English-2.pdfPhoenix 2811828 Certification English.pdfPhoenix 2811828 Certification International.pdfPhoenix 2811828 Data Sheet English.pdfPhoenix 2811828 Drivers and Driver Modules International.zipPhoenix 2811828 E-Learning English.wmvPhoenix 2811828 Manual English.pdfPhoenix 2811828 Manufacturers declaration English.pdfPhoenix 2811828 Manufacturers declaration International-2.pdfPhoenix 2811828 Manufacturers declaration International.pdfPhoenix 2811828 Package Slip International.pdfPhoenix 2811828 Software English.slbPhoenix 2811828 Software International.exePhoenix 2811828 Software International.zipPhoenix 2811828 Tender Text English.zip
