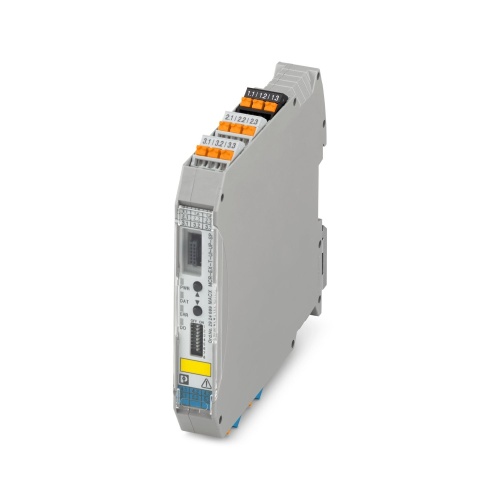

Phoenix Contact 2924689 Temperature measuring transducer MACX MCR-EX-T-UI-UP-SP
Normally In Stock
Code: 72339
Phoenix 2924689 Voltage, Input/output/power supply Push-in connection Temperature measuring transducer Measurement and Control
Condition: New
Usually ships Same Day or Next Day$783.62
Sale Price
$653.02
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

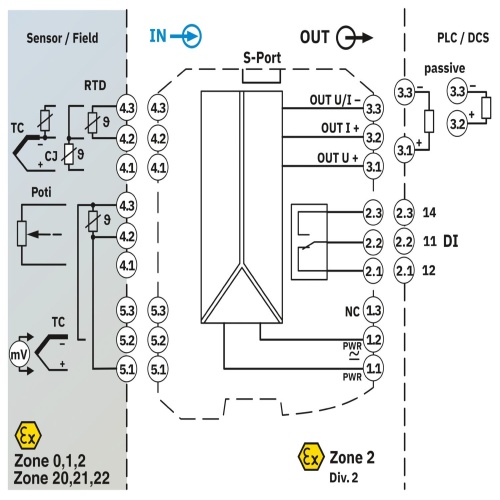

Phoenix Contact 2924689 The programmable ex-i temperature transducer features an analog output and one limit value relay, and is configured as a standard setup with options for resistance thermometer in 2-, 3-, or 4-conductor technology and thermocouples, providing electrical isolation and a wide-range power supply, with push-in connection and compliance to SIL and PL standards.
Specifications
Manufacturer
Phoenix Contact
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Connection Type
Push-In Connection
Component
Temperature Transducer
Conditioner Output Signal Range
22 Ma
Conditioner Output Signal Range
± 11 Volt
Features
Configuration via software (FDT/DTM) or IFS-OP-UNIT operator interface and display unit
Programming during operation with Ex measuring circuit connected and also voltage-free using IFS-USB-PROG-ADAPTER programming adapter
Cold junction compensation with separate plug
Input for resistance thermometers, thermocouples, resistance-type sensors, potentiometers, and mV sources, [Ex ia] IIC
Up to SIL 2 in accordance with EN 61508
Installation in zone 2, protection type "n" (EN 60079-15) permitted
Plug-in screw or spring-cage connection technology (Push-in technology)
Status indicator for supply voltage, cable, sensor, and module errors
Measure differential temperatures
Wide-range power supply of 19.2 ... 253 V AC/DC
Freely programmable input and output
Inverse output signal ranges as an option
Relay switching output
Downloads
Phoenix 2924689 Application Note English.pdfPhoenix 2924689 CAD data International.dxfPhoenix 2924689 CAD data International.pdfPhoenix 2924689 CAD data International.stpPhoenix 2924689 Certification English-2.pdfPhoenix 2924689 Certification English.pdfPhoenix 2924689 Certification International.pdfPhoenix 2924689 Data Sheet English.pdfPhoenix 2924689 Drivers and Driver Modules International.zipPhoenix 2924689 E-Learning English.wmvPhoenix 2924689 Manual English.pdfPhoenix 2924689 Manufacturers declaration English.pdfPhoenix 2924689 Manufacturers declaration International-2.pdfPhoenix 2924689 Manufacturers declaration International.pdfPhoenix 2924689 Package Slip International-2.pdfPhoenix 2924689 Package Slip International.pdfPhoenix 2924689 Software International.exePhoenix 2924689 Software International.zipPhoenix 2924689 Tender Text English.zip
