Code: 723381

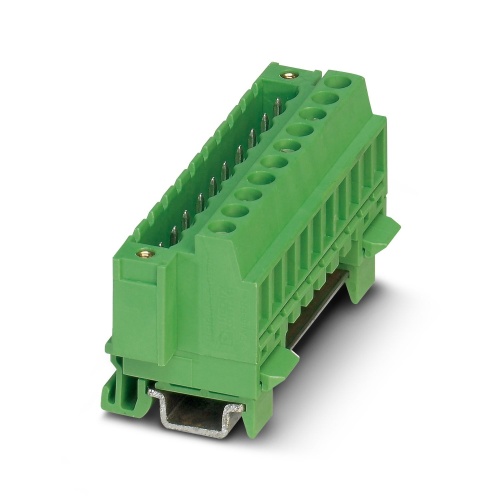

Phoenix Contact 1803138 DIN rail connector MSTBVK 2,5/20-GF-5,08
Normally In Stock
Phoenix Contact MSTBVK 2,5/20-GF-5,08 - DIN rail connector, 20 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1803138
Condition: New
Usually ships Same Day or Next Day$86.64
Sale Price
$72.20
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1803138 A DIN rail connector with a nominal cross-sectional area of 2.5mm² has been manufactured with specific specifications, including a green color and rated for up to 320 volts (III/2), it features 20 terminals for making connections, is secured by screw connection with tension sleeve and can be mounted using threaded flange packaging in cardboard.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Component
DIN Rail Connector
Manufacturer
Phoenix Contact
Number of Connections
20
Number of Positions
20
Connector Pitch
5.08 mm
Features
Direct plug-in block for mounting on NS 15 DIN rail
Can be combined with the MSTB 2,5 range
Well-known connection principle allows worldwide use
