Code: 723120
Phoenix Contact 1788839 DIN rail connector MSTBVK 2,5/13-G-5,08
Normally In Stock
Phoenix Contact MSTBVK 2,5/13-G-5,08 - DIN rail connector, 13 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1788839
Condition: New
Usually ships Same Day or Next Day$38.46
Sale Price
$32.05
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

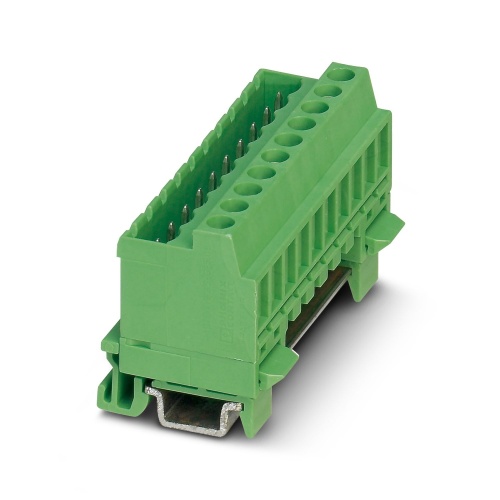

Phoenix Contact 1788839 A DIN rail connector with a 2.5mm² cross-section and green color features 13 pins and can handle up to 12A of current at a maximum voltage of 320V. The contacts are made of tin and have a pin connection type, while the plug-in system is COMBICON MSTB 2,5 with no locking mechanism. This connector comes in a range of product numbers, including MSTBVK 2,5/..-G, has a pitch of 5.08mm, and uses a screw connection method with tension sleeve, which can be secured using an L-slotted screw head.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Component
DIN Rail Connector
Manufacturer
Phoenix Contact
Number of Connections
13
Number of Positions
13
Connector Pitch
5.08 mm
Features
Direct plug-in block for mounting on NS 15 DIN rail
Can be combined with the MSTB 2,5 range
Well-known connection principle allows worldwide use
