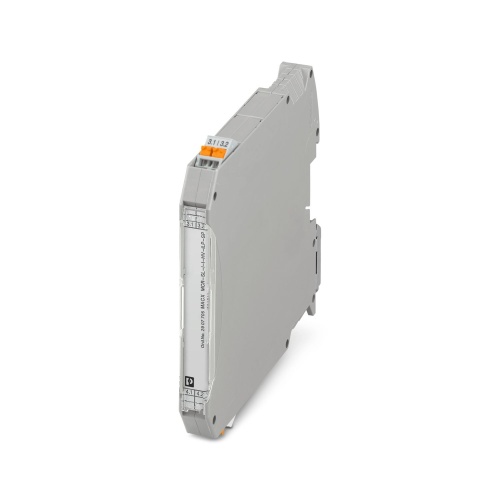

Phoenix Contact 2907705 Passive separator MACX MCR-SL-I-I-HV-ILP-SP
Normally In Stock
Code: 72307
MACX MCR-SL-I-I-HV-ILP-SP MACX MCR-SL-I-I-HV-ILP-SP Phoenix Contact 2907705 Input/output/power supply Loop-powered isolators
Condition: New
Usually ships Same Day or Next Day$400.03
Sale Price
$333.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 2907705 A 1-channel input loop-powered 2-way isolator is designed to provide enhanced electrical isolation for analog signals, utilizing increased isolating voltage and plug-in connection technology. This device allows the input signal to be isolated from the output signal, with a range of 0-20 mA, and features push-in connections for easy setup and operation.
Specifications
Component
Isolator
Manufacturer
Phoenix Contact
Conditioner Output Signal Range
0 Ma - 20 Ma
Conditioner Output Signal Range
4 Ma - 20 Ma
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Number of Channels
1
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Conditioner Connection Type
Push-In Connection
Conditioner Output Signal Range
27.5 Volt
Features
Safe isolation, conditioning, filtering, and amplification with comprehensive solutions for analog signal processing
Integrate field signals into industrial networks while also benefiting from safe electrical isolation with signal conditioners with a bus and network connection
Achieve space savings of up to 65% compared to other isolators on the market with highly compact signal conditioners
Precise transmission and high operational safety with signal conditioners, all of which have SIL certification
Integrate analog signals easily into the safety chain in accordance with the Machinery Directive with signal conditioners with performance level
Downloads
Phoenix 2907705 CAD data International.dxfPhoenix 2907705 CAD data International.pdfPhoenix 2907705 CAD data International.stpPhoenix 2907705 Certification International.pdfPhoenix 2907705 Data Sheet English.pdfPhoenix 2907705 Manufacturers declaration English.pdfPhoenix 2907705 Manufacturers declaration International-2.pdfPhoenix 2907705 Manufacturers declaration International.pdfPhoenix 2907705 Package Slip International.pdfPhoenix 2907705 Product Information English.pdfPhoenix 2907705 Tender Text English.zip
