Phoenix Contact 1788017 DIN rail connector UMSTBVK 2,5/11-GF-5,08
Normally In Stock
Phoenix Contact UMSTBVK 2,5/11-GF-5,08 - DIN rail connector, 11 Positions, 5.08 mm, 320 VAC, 12 Amp, Cu alloy - 1788017
Condition: New
Usually ships Same Day or Next Day$32.17
Sale Price
$26.81
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

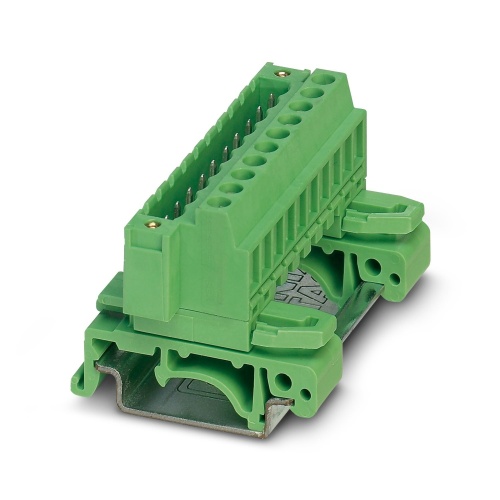

Phoenix Contact 1788017 The DIN rail connector has a nominal cross-section of 2.5mm², is green in color and can handle up to 12A of current at a rated voltage of 320V. It features a Sn contact surface with a pin connection type and comes in 11 different potentials, all connected via screw fastening with tension sleeve, a L Slotted screw head, and has a standard connector pattern alignment. The connector is mounted using a threaded flange and is packaged in cardboard, with the COMBICON MSTB 2,5 plug-in system also being used for its design.
Specifications
Connector Amperage
12 Amp
Connector Color
Green
Connector Material
Cu Alloy
Component
DIN Rail Connector
Manufacturer
Phoenix Contact
Number of Connections
11
Number of Positions
11
Connector Pitch
5.08 mm
Features
Direct plug-in block with universal foot for mounting on NS 32 or NS 35 DIN rail
Can be combined with the MSTB 2,5 range
Screwable flange for superior mechanical stability
Well-known connection principle allows worldwide use
