Code: 722670

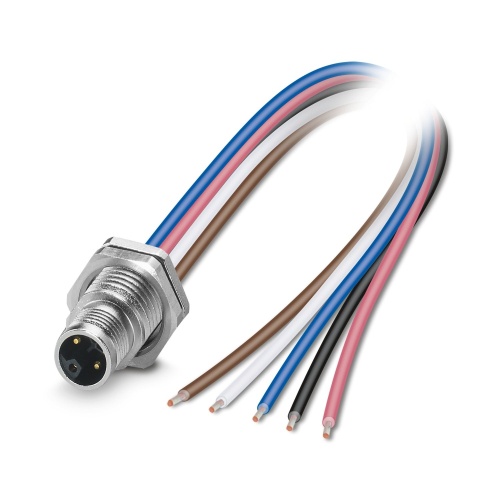

Phoenix Contact 1163064 Device connector rear mounting SACC-DSI-M12MSL-4FE-M16XL/1,0
Normally In Stock
Phoenix Contact SACC-DSI-M12MSL-4FE-M16XL/1,0 - Device connector rear mounting, 5 Positions, 63 VDC, 16 Amp, CuZn - 1163064
Condition: New
Usually ships Same Day or Next Day$38.75
Sale Price
$32.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

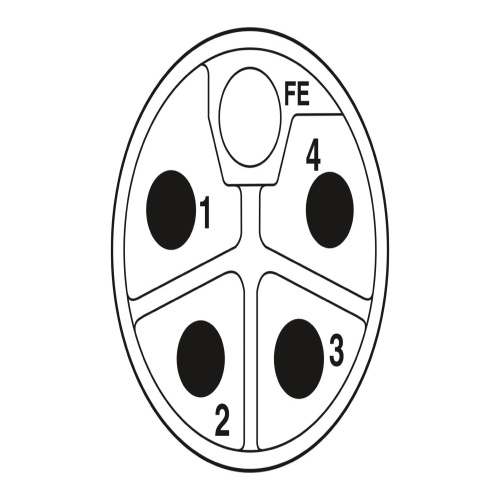

Phoenix Contact 1163064 The device connector has a rear mounting option and comes with power capabilities. It features a straight pin design with an M12 coding and is mounted using an M16 x 1.5 thread pattern. The unit includes individual wires, which have a cable length of 1 meter and a cross-sectional area of 2.50mm². The wires are made from PEX litz wire, are potted for protection, and meet RoHS II regulations regarding lead-free alternatives. Additionally, a lead-free variant with <0.1% Pb content is available upon request in advance.
Specifications
Connector Amperage
16 Amp
Connector Material
Cuzn
Component
Circular Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Features
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
