Code: 722668

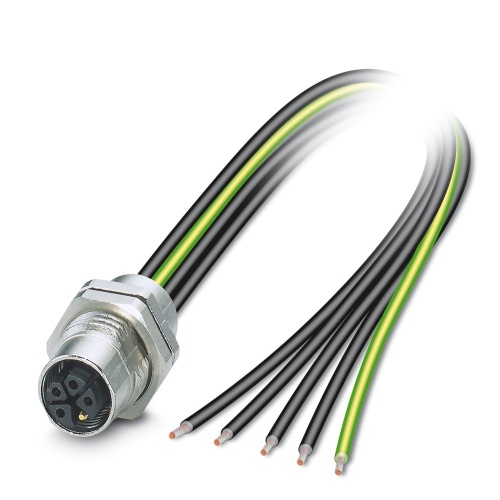

Phoenix Contact 1162474 Device connector rear mounting SACC-DSI-M12FSK-4PE-M16XL/1,0
Normally In Stock
Phoenix Contact SACC-DSI-M12FSK-4PE-M16XL/1,0 - Device connector rear mounting, 5 Positions, 630 VAC, 16 Amp, CuZn - 1162474
Condition: New
Usually ships Same Day or Next Day$41.99
Sale Price
$34.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

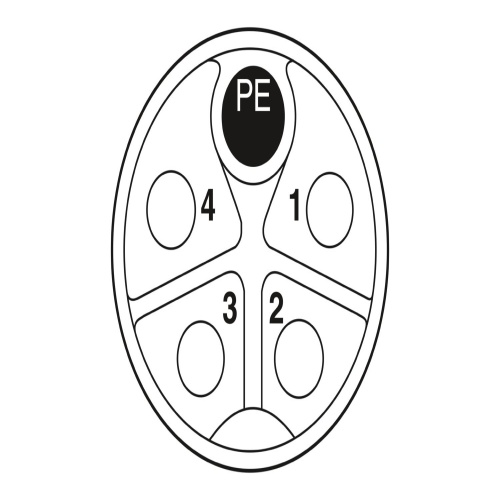

Phoenix Contact 1162474 The connector has a rear mounting option that can accommodate devices, featuring an M12 socket with a straight coding and K marking on the free end of the cable. The rear mounting system uses an M16 x 1.5 screw, and the cable is made up of individual wires with a cross-sectional area of 2.50 mm², wound into PEX litz wire that has been potted for added protection. This connector meets all requirements set by RoHS II regulations, including a maximum lead content of less than 0.1%.
Specifications
Connector Amperage
16 Amp
Connector Material
Cuzn
Component
Circular Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Features
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
