Code: 722649

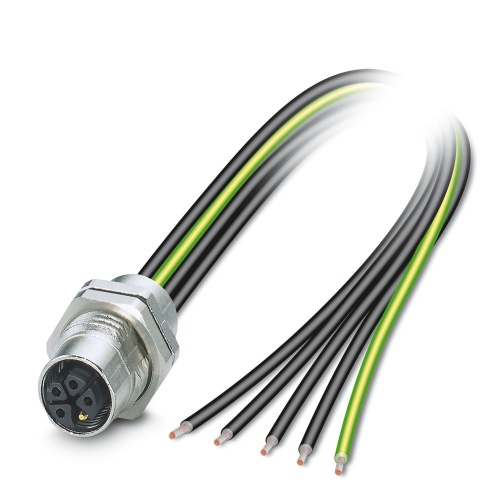

Phoenix Contact 1178140 Device connector rear mounting SACC-DSI-M12FSK4PE-M16/1,0-1,5
Normally In Stock
Phoenix Contact SACC-DSI-M12FSK4PE-M16/1,0-1,5 - Device connector rear mounting, 5 Positions, 630 VAC, 12 Amp, CuZn - 1178140
Condition: New
Usually ships Same Day or Next Day$29.10
Sale Price
$24.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

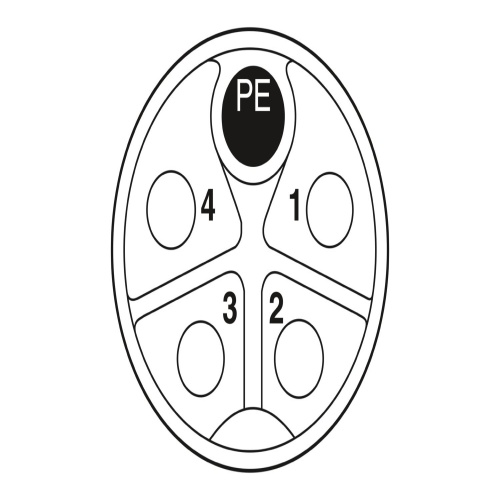

Phoenix Contact 1178140 This device connector has a M16 x 1.5 rear mounting and comes with a straight, five-position socket that is standard for M12 connectors. The coding indicates it is designed to accommodate free cable ends. It also features individual wires connected by UL/cUL certified stranded hook-up wire, which is potted to prevent damage. This product meets the requirements of RoHS II, excluding lead content below 0.1% and is identified as item no. 1238589.
Specifications
Connector Amperage
12 Amp
Connector Color
Black
Connector Material
Cuzn
Component
Circular Connector
Manufacturer
Phoenix Contact
Number of Positions
5
Features
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
