Code: 722557

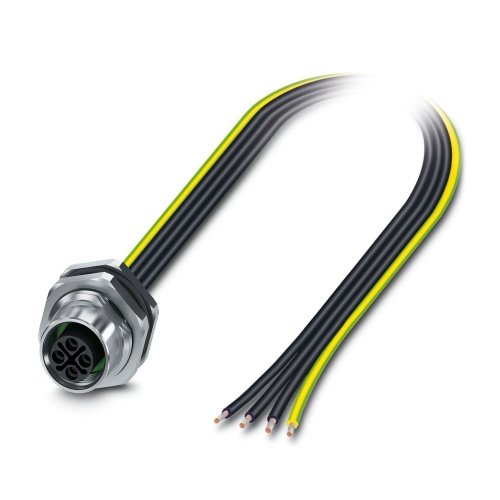

Phoenix Contact 1420396 Device connector rear mounting SACC-DSI-M12FSS-4P-M16XL/2,0PE
Normally In Stock
Phoenix Contact SACC-DSI-M12FSS-4P-M16XL/2,0PE - Device connector rear mounting, 4 Positions, 630 VAC, 12 Amp, CuZn - 1420396
Condition: New
Usually ships Same Day or Next Day$24.64
Sale Price
$20.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1420396 This device connector features a rear mounting system and comes with a power supply via an M12-Standard socket that accepts straight coding on the free end of the cable, with additional requirements for rear mounting at M16 x 1.5 and individually insulated wires available over a 2m length of 1.31mm² stranded hook-up wire that is potted and meets RoHS II standards for lead-free alternatives, although a 6c (Pb < 0.1%) variant can be requested in advance.
Specifications
Connector Amperage
12 Amp
Connector Material
Cuzn
Component
Circular Connector
Manufacturer
Phoenix Contact
Number of Positions
4
Features
For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut
