Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

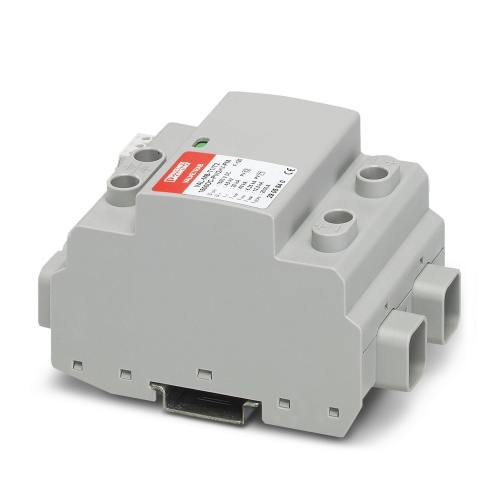

Phoenix Contact 2905640 Lightning/surge arrester type 1/2 VAL-MB-T1/T2 1500DC-PV/2+V-FM
Normally In Stock
Code: 72237
VAL-MB-T1/T2 1500DC-PV/2+V-FM Phoenix 2905640 PV arrester Screw connection Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships within 7-14 days. Call for ship time.$513.32
Sale Price
$427.77
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2905640 A lightning current arrester or surge protective device suitable for two-position isolated and grounded DC power systems rated up to 1500V, is designed for easy DIN rail mounting and features remote indication contact, temperature-monitored protective elements, and provides a status message on the module.
Specifications
Fault Warning
Optical
Arrester Class according to IEC
II
Arrester Class according to IEC
T2
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Surge Protector Type
Replacement Plug
Maximum Continous Voltage
580 Volt
Nominal Discharge Current
15 Ka
Component
Surge Arrester
Features
Main connections with extended insertion funnels for increased resistance to creepage
Double terminal block for safe and easy equipotential bonding connection
Screw shafts with raised domes to ensure safe working
Space-saving installation, thanks to the compact design
Visual display for checking the status directly on the device
Plug-in signal connection for remote status signaling
