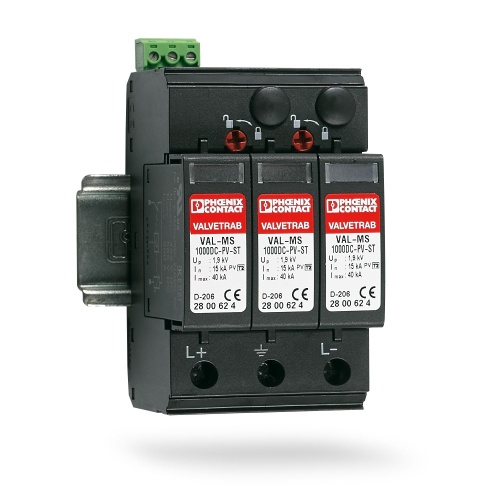

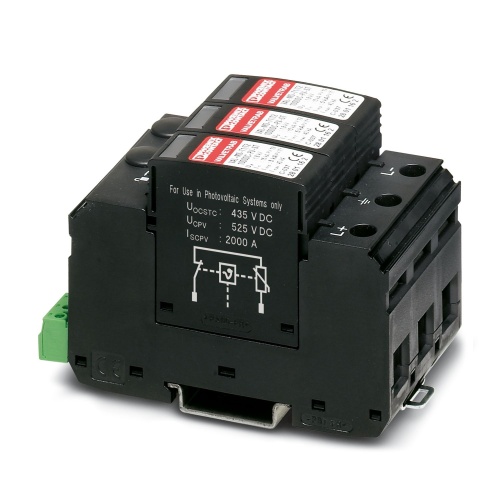

Phoenix Contact 2801161 Lightning/surge arrester type 1/2 VAL-MS-T1/T2 1000DC-PV/2+V-FM
Normally In Stock
Code: 72227
VAL-MS-T1/T2 1000DC-PV/2+V-FM Phoenix 2801161 PV arrester 1170 VDC Plug-in/screw connection via COMBICON,Screw connection,Fork-type cable lug Lightning/surge arrester type 1/2 Surge Protection
Condition: New
Usually ships Same Day or Next Day$660.59
Sale Price
$550.49
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2801161 A lightning current arrester designed for two-position isolated and grounded 1000V DC power voltage systems can be mounted on a DIN rail, featuring a three-position base element that includes a remote indication contact and three pluggable temperature-monitored protective elements, with each plug providing a status message.
Specifications
Fault Warning
None
Arrester Class according to IEC
C1
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Direction of Action
Line-Earth Ground
Manufacturer
Phoenix Contact
Connection Method
Screw Connection
Maximum Continous Voltage
30 Volt
Nominal Discharge Current
5 Ka
Surge Protector Line Voltage
1170 Volt
Component
Surge Arrester
Features
Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
Easy testing and insulation measurement, thanks to pluggable protection modules
Quality proven millions of times over in the widest range of applications
Downloads
Phoenix 2801161 CAD data International.dxfPhoenix 2801161 CAD data International.pdfPhoenix 2801161 CAD data International.stpPhoenix 2801161 Certification English.pdfPhoenix 2801161 Flyer English.pdfPhoenix 2801161 Manufacturers declaration English.pdfPhoenix 2801161 Manufacturers declaration International.pdfPhoenix 2801161 Package Slip International.pdfPhoenix 2801161 Software International.zipPhoenix 2801161 Surge Protection English.pdfPhoenix 2801161 Tender Text English.zip
