Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

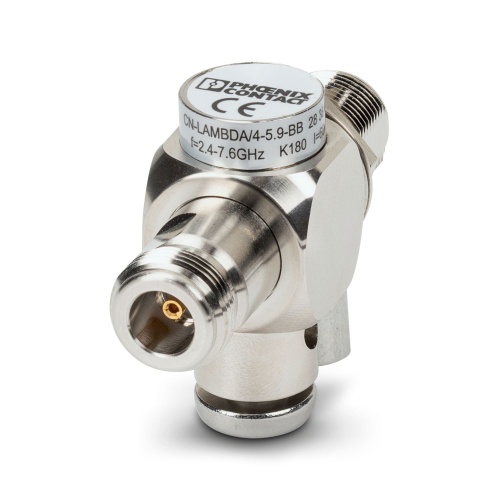

Phoenix Contact 2838490 Surge protection device CN-LAMBDA/4-5.9-BB
Normally In Stock
Code: 72210
CN-LAMBDA/4-5.9-BB Phoenix 2838490 Surge protection for transceiver systems N Connector,N connector, female Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$160.84
Sale Price
$134.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

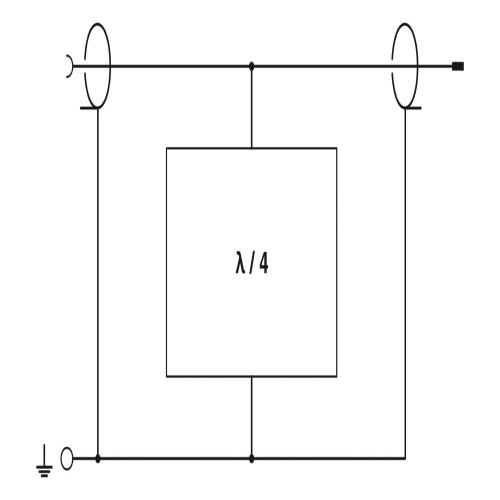

Phoenix Contact 2838490 A coaxial attachment plug featuring Lambda/4 technology serves as a surge protector for connections between signal interfaces, utilizing N connectors on both ends to establish a secure and reliable connection between two devices.
Specifications
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Width
26.1 mm
Direction of Action
Line-Shield-Earth Ground
Manufacturer
Phoenix Contact
Mounting (RF Protection)
Connection-Specific Intermediate Plugging
Frequency (RF Protection)
2.4 Ghz - 5.9 Ghz
Nominal Current
5 Amp
Nominal Discharge Current
50 Kamp
Component
Surge Protection Device
Features
Exceptional protective properties with Lambda/4 technology
Use under extreme ambient conditions with robust design
Service-friendly with maintenance-free protective circuit
Easy installation with system-compliant connection
Maintenance-free surge protection with LAMBDA/4 technology
As an adapter between devices and cables
Outdoor surge protection
High HF power in the kW range
Low protection level
Downloads
Phoenix 2838490 CAD data International.dxfPhoenix 2838490 CAD data International.stpPhoenix 2838490 Data Sheet English.pdfPhoenix 2838490 Flyer English.pdfPhoenix 2838490 Manufacturers declaration International.pdfPhoenix 2838490 Package Slip International.pdfPhoenix 2838490 Software International.zipPhoenix 2838490 Surge Protection English.pdfPhoenix 2838490 Tender Text English.zip
