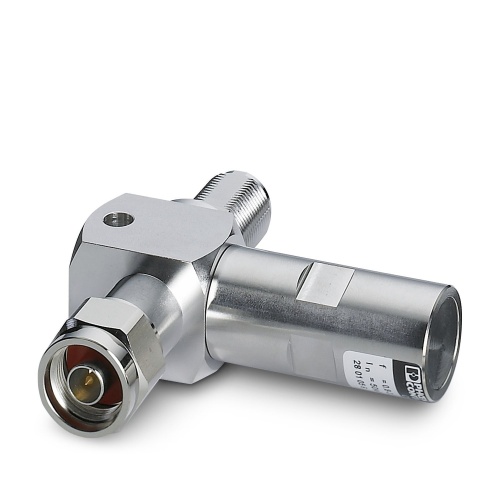

Phoenix Contact 2801056 Surge protection device CN-LAMBDA/4-2.25-SB
Normally In Stock
Code: 72207
CN-LAMBDA/4-2.25-SB Phoenix 2801056 Surge protection for transceiver systems N connector 50 Ω,N connector, male,N connector, female Surge protection device Surge Protection *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$176.59
Sale Price
$147.16
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

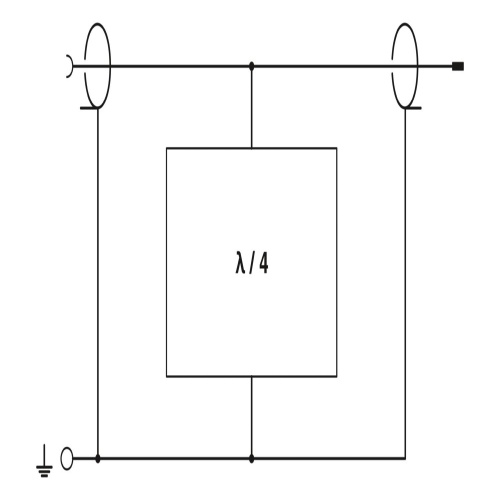

Phoenix Contact 2801056 A specialized attachment plug featuring Lambda/4 technology serves as surge protection for coaxial signal interfaces, providing a secure connection through N connectors that plug into sockets.
Specifications
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1

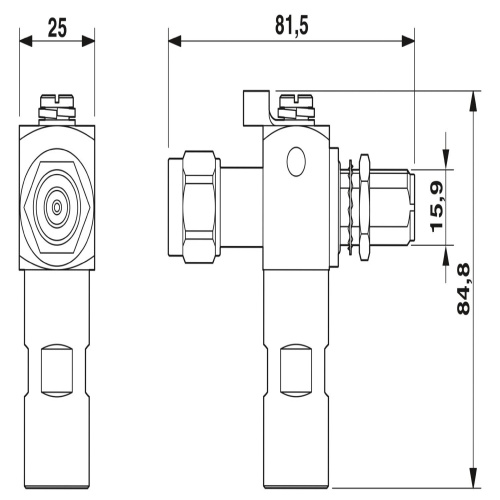

Width
25 mm
Direction of Action
Line-Shield-Earth Ground
Impulse Discharge Current
≤ 20 Ka
Manufacturer
Phoenix Contact
Mounting (RF Protection)
Connection-Specific Intermediate Plugging
Frequency (RF Protection)
0.8 Ghz - 2.25 Ghz
Nominal Discharge Current
50 Kamp
Component
Surge Protection Device
Features
Maintenance-free surge protection with LAMBDA/4 technology
Low protection level
High HF power in the kW range
Downloads
Phoenix 2801056 CAD data International.dxfPhoenix 2801056 CAD data International.pdfPhoenix 2801056 CAD data International.stpPhoenix 2801056 Flyer English.pdfPhoenix 2801056 Manufacturer's declaration International.pdfPhoenix 2801056 Manufacturers declaration International.pdfPhoenix 2801056 Software International.zipPhoenix 2801056 Surge Protection English.pdfPhoenix 2801056 Tender Text English.zip
