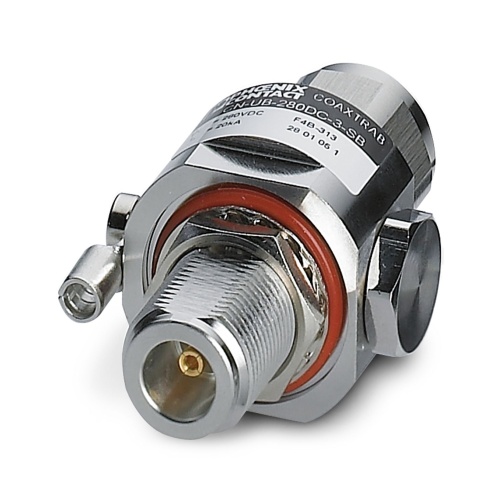

Phoenix Contact 2801051 Surge protection device CN-UB-280DC-3-SB
Normally In Stock
Code: 72205
CN-UB-280DC-3-SB Phoenix 2801051 Surge protection for transceiver systems N connector 50 Ω,N connector, male,N connector, female Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$138.16
Sale Price
$115.13
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2801051 A specialized attachment plug features interchangeable surge protection units specifically designed for use with coaxial signal interfaces, utilizing an N connector plug/socket to establish a secure connection.
Specifications
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Width
31 mm
Maximum Continous Voltage
280 V DC
Impulse Discharge Current
2.5 Ka
Direction of Action
Line-Shield-Earth Ground
Manufacturer
Phoenix Contact
Mounting (RF Protection)
Connection-Specific Intermediate Plugging
Frequency (RF Protection)
0 Hz - 3 Ghz
Nominal Discharge Current
20 Kamp
Nominal Current
5 Amp
Component
Surge Protection Device
Features
Installed as surge protection between antenna and wireless module
Mounting plate enables mounting, e.g., in a control cabinet
Replaceable, gas-filled arrester
For outdoor installations
Downloads
Phoenix 2801051 CAD data International.dxfPhoenix 2801051 CAD data International.stpPhoenix 2801051 CAD data International.wrlPhoenix 2801051 Flyer English.pdfPhoenix 2801051 Manufacturers declaration International.pdfPhoenix 2801051 Product Information English.pdfPhoenix 2801051 Software International.zipPhoenix 2801051 Surge Protection English.pdfPhoenix 2801051 Tender Text English.zip
