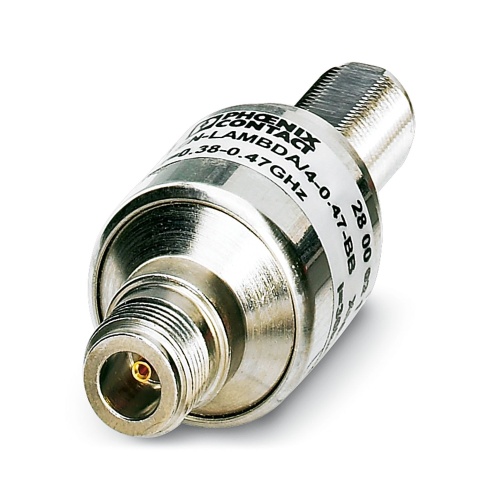

Phoenix Contact 2800021 Surge protection device CN-LAMBDA/4-0.47-BB
Normally In Stock
Code: 72204
CN-LAMBDA/4-0.47-BB Phoenix 2800021 Surge protection for transceiver systems N Connector,N connector, female Surge protection device Surge Protection
Condition: New
Usually ships Same Day or Next Day$160.84
Sale Price
$134.03
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

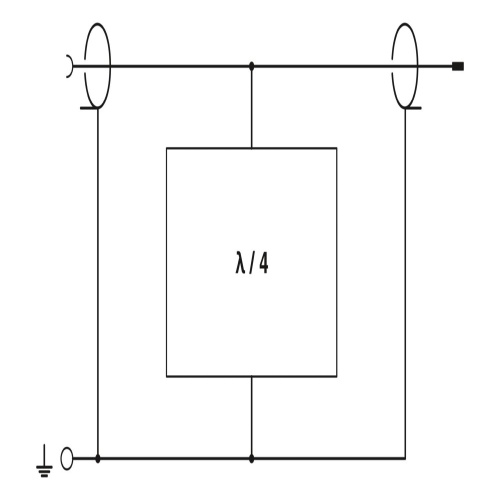

Phoenix Contact 2800021 A coaxial signal interface attachment plug features Lambda/4 technology as a surge protection method, providing reliable connection stability and fault tolerance, and is secured using N connectors that form an electrical and mechanical connection between two sockets.
Specifications
Arrester Class according to IEC
C2
Arrester Class according to IEC
C3
Arrester Class according to IEC
D1
Width
32 mm
Direction of Action
Line-Shield-Earth Ground
Manufacturer
Phoenix Contact
Mounting (RF Protection)
Connection-Specific Intermediate Plugging
Frequency (RF Protection)
380 Mhz - 470 Mhz
Nominal Discharge Current
20 Kamp
Nominal Current
5 Amp
Component
Surge Protection Device
Features
Exceptional protective properties with Lambda/4 technology
Use under extreme ambient conditions with robust design
Service-friendly with maintenance-free protective circuit
Easy installation with system-compliant connection
Downloads
Phoenix 2800021 CAD data International.stpPhoenix 2800021 Data Sheet English.pdfPhoenix 2800021 Flyer English.pdfPhoenix 2800021 Manufacturers declaration International.pdfPhoenix 2800021 Package Slip English.pdfPhoenix 2800021 Software International.zipPhoenix 2800021 Surge Protection English.pdfPhoenix 2800021 Tender Text English.zip
