Phoenix Contact 2905228 Device protection Type 3 surge protection device
Phoenix 2905228 Device protection 120 VAC Screw connection Type 3 surge protection device Surge Protection
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
This product is now obsolete from the manufacturer
Below are replacement products designated by the manufacturer. See description and specs to assure they will work for your application.
PLT-SEC-T3-120-FM-UT Phoenix Contact 2907918 Power Surge Supressor AC-DC 120V |
Go to this replacement |

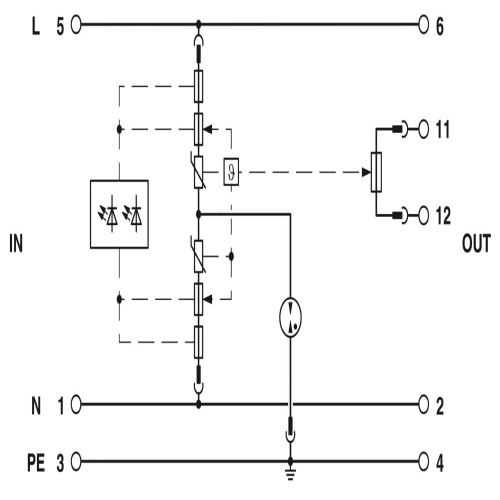

Pluggable device protection, according to type 3/class III, for 1-phase power supply networks with separate N and PE (3-conductor system: L1, N, PE), with integrated surge-proof fuse and remote indication contact. Also suitable for DC applications.
| Specifications | |
| Fault Warning | Optical |
| Fault Warning | remote indicator contact |
| Arrester Class according to IEC | II |
| Arrester Class according to IEC | T2 |
| Direction of Action | 1L-N-PE |
| Manufacturer | Phoenix Contact |
| Connection Method | Screw connection |
| Surge Protector Line Voltage | 120 Volt |
| Surge Protector Type | Replacement plug |
| Max Discharge Capacity | 55 A |
| Nominal Discharge Current | 10 kA |
