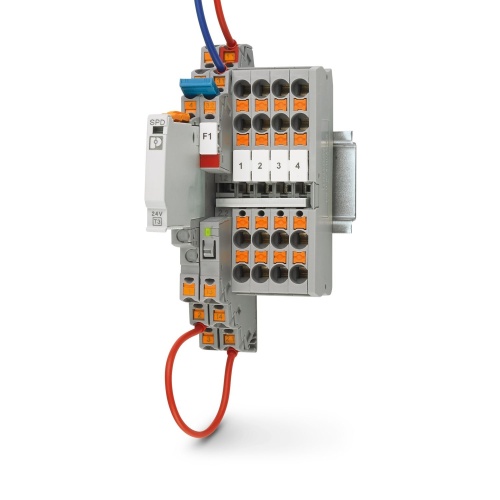

TTC-6P-T3-24DC-PT-I Phoenix Contact 1027586 Device protection Type 3 surge protection device
TTC-6P-T3-24DC-PT-I Phoenix 1027586 Device protection 24 VDC Push-in connection Type 3 surge protection device Surge Protection
Normally In Stock! Order now!
Condition: New
Usually ships Same Day or Next Day
Price: $243.75
Sale Price:
$202.80
Type 3 surge protection, consisting of protective plug and base element, with integrated status indicator for 24 VDC power supplies.
| Specifications | |
| Fault Warning | Optical |
| Fault Warning | remote indicator contact |
| Arrester Class according to IEC | II |
| Arrester Class according to IEC | T2 |
| Manufacturer | Phoenix Contact |
| Connection Method | Screw connection |
| Surge Protector Line Voltage | 24 Volt |
| Surge Protector Type | Surge arrester |
| Maximum Continous Voltage | 580 Volt |
| Nominal Discharge Current | 15 kA |
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- Continuous monitoring of protective devices, plus mechanical status indicator with optional remote signaling
- Finding the right product for all possible requirements in MCR applications is easy, thanks to the complete range of products with customized features
- Space-saving and cost-saving with a narrow overall width of just 6 mm
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
